Standard Features:
• ISO 9001 certified
• Taiwan machines

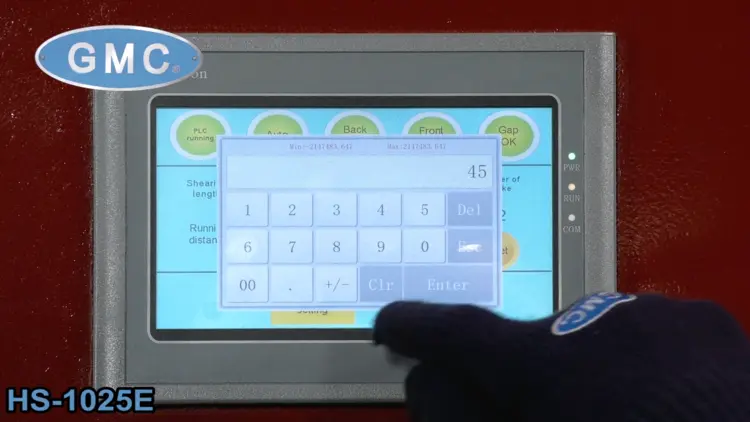

• comes with go-to NC power back gauge with touch screen
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened
• to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 10' | 3,048 mm |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 20 hp | 14.9 kW |
| SPM | 12 strokes/min. | 12 strokes/min. |
| Dimensions | 181" x 117" x 65" | 181" x 117" x 65" |
| Weight | 13,850 LBS | 13,850 LBS |
Cutting capacity:
Mild steel 10’ x ¼”
Stainless steel 10’ x 10 Ga.
soft aluminum 10' x 3/8"
min. thickness 20Ga
Blade length 10'2"
Strokes per minute 10-12
Throat depth 18"
Worktable height 34 1/2"
Front support arm 24"
NC Back Gauge 36" go to NC powered back gauge with touch screen
Blade rake angle 2 degree
Oil tank cap. 53 Gal.
Main Motor
20 HP, 220V/70A, 3 Phase
440V/35A, 3 Phase (OPTIONAL)
NC Back Gauge 1 HP, 220V, 3 Phase
Machine weight 13,850 LBS
Machine dimensions 181" x 117" x 65" (with back gauge and squaring arm)
Standard Included Equipment:
• 36” go to NC back gauge w/ touch screen
• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA) with gap dial
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 4 each 24” front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
