Okuma GA-26T CNC Cylindrical Angle Head Grinder, Marposs P1 Gage, Jib Crane, 2.25" Wide x 20-24" Diameter Wheel
| Swing | 12.99" | 329.95 mm |
| Size Capacity | N/A | N/A |
| Centers | 25.6" | 650.24 mm |
| Plain or Angle Head | Angle Head | Angle Head |
| Grinding Wheel Dia. | 24" | 609.6 mm |
| Wheel Power | 10 hp | 7.5 kW |
| Gauging | Yes | Yes |
| Control | CNC | CNC |
| Weight | 110 LBS | 110 LBS |

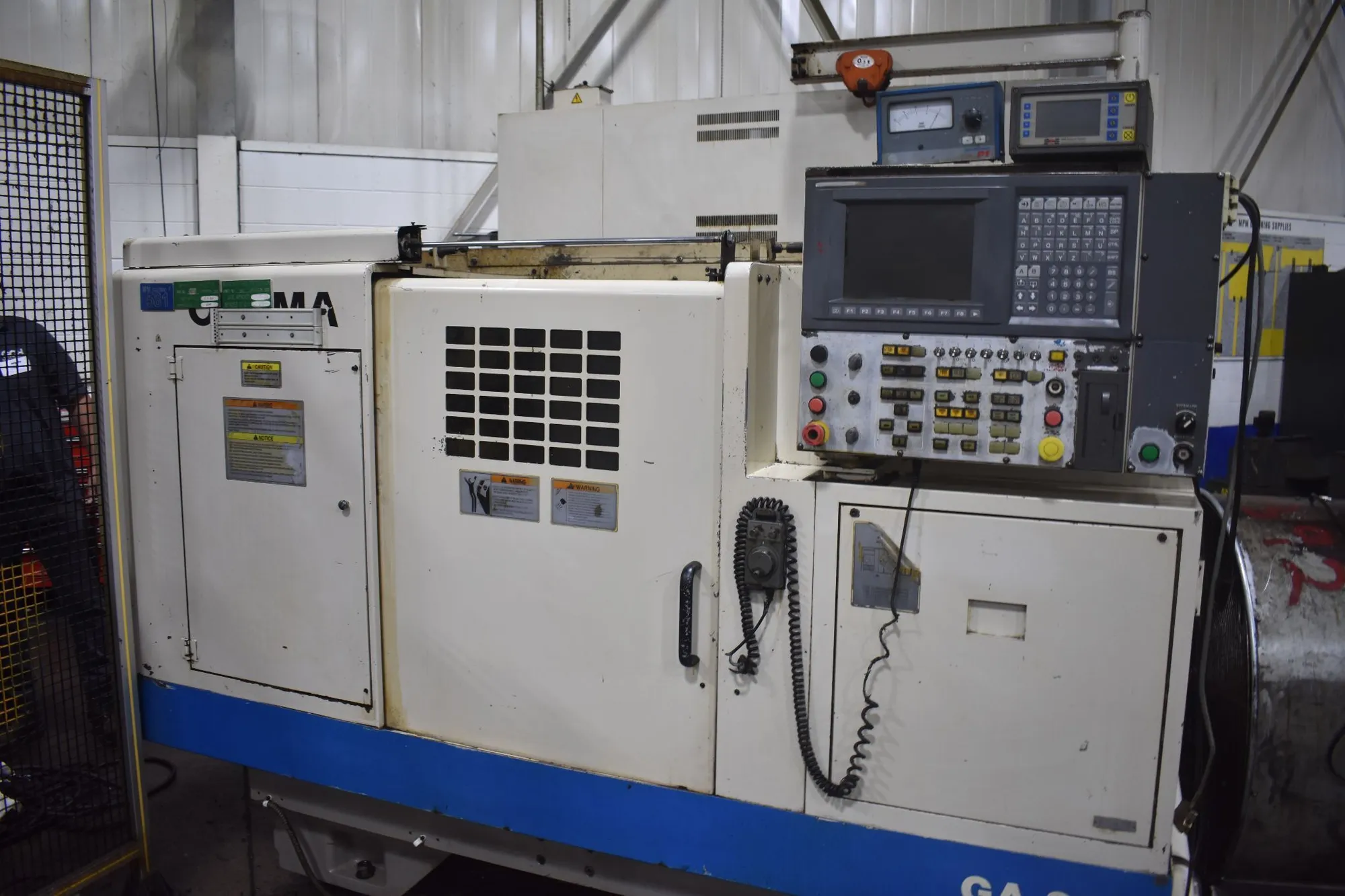

OKUMA GA-26T CNC CYLINDRICAL GRINDER
S/N 104593 YEAR: 2003
Specifications
Max Swing…………………………………………………………….................12.99”
Distance Between Centers………………………………………………………..25.6”
Max Workpiece Weight…………………………………………………………110 LBS
Grinding Wheel…………………………………………………………………..24” Dia. X 2.95” Wide
Spindle Motor…………………………………………………………………….10 HP
Wheel Speed………………………………………………………………………8859 FPM (Peripheral)
X-Axis Travel……………………………………………………………………..12.59”
Z-Axis Travel……………………………………………………………………...25.59”
Center Hole Taper In Work Spindle………………………………………………#4 MT
Center Taper In Tailstock…………………………………………………………#4 MT
Equipped With
SBS balancing system.
Marposs P1 in process gauging.
Jib crane for wheel changing.
Tailstock.
