USED BLANCHARD 20D-36

20-36 Blanchard, 36" Magnetic Chuck, Trabon Manual Lube, Neutrofier, Attached Electrics, Wet Base, 30 HP, As Is

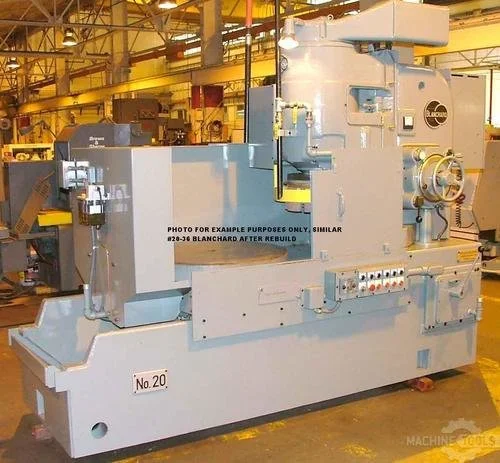

20D-36 BLANCHARD VERTICAL SURFACE GRINDER
Extended Vertical Range
Wet Base
S/N 14130 Year: 1973

STANDARD SPECIFICATIONS

Range
38diameter x 30 high over 36 diameter chuck with new wheel.

KVA Requirements
30HP – 43 KVA

Work Table
One piece 36 diameter magnetic chuck, 792 watts, 115 volts or 230 volts, D.C.3,000 pounds maximum load.

Wheels and/or Segments
20x 5 x 16 1/2 cylinder wheel, or four CD-20 chuck segments, each 111/4 x 2 1/4 x 6 long.

Speeds
Wheel:720 RPM on 60 cycles, 750 RPM.
Chuck:6, 9, 12, 18, 25, and 33 RPM (on 60 cycles).
Other motors: Chuck rotation – 1200 RPM (60 cycles), table traverse and head raising –900 RPM.

Base
Wet– 125 gallon tank in base.

Floor Space and Height
11’11 x 8’ 4 maximum height: 9’ 1.

Weight
With standard equipment: 12,750 pounds.

Specifications are deemed accurate, however, subject to verification or prior sale.
