USED 1966 HEALD 1CF-91

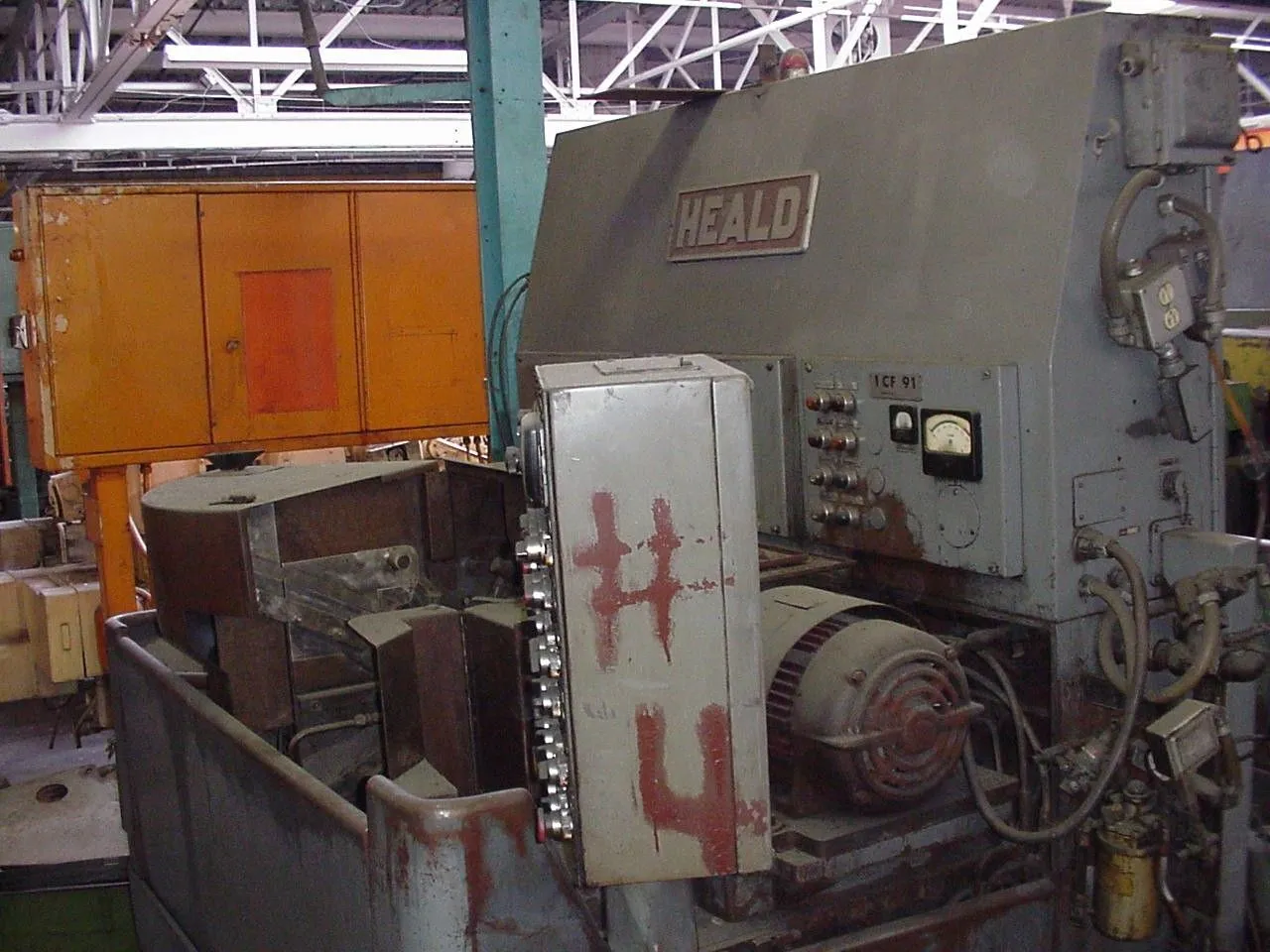

1CF-91 Heald Internal Grinder, Red Head Spindle, Auto Load and Unload, Single Point Radius Dresser, Motor & Controls, As Is.









    1CF-91 HEALD

S/N 40863   Year: 1966


STANDARD SPECIFICATIONS

CAPACITIES
Maximum outside diameter of work.............. 4 1/2"
Minimum outside diameter of work.............. 7/8"
Maximum length of work........................ 2"
Maximum swivel of work........................ 12"
Center of wheel spindle from floor............ 40"
SPEEDS AND FEEDS
Table travel(total including run out)......... 5 3/4"
Wheel wear compensation....................... 0-.004" on dia.
                                               (.0001" increments)
Work speeds - standard....................... 266,366,487
                                              804,1105, & 1473 RPM
High force(adjustable)........................ 30-300 lbs.
DRIVE AND POWER REQUIREMENTS
Backing plate motor........................... 1/2 HP @ 520 RPM
Wheelhead motor for belt drive................ 7 1/2 HP @ 3600 RPM
Hydraulic pump motor.......................... 2 HP @ 1800 RPM
Coolant pump motors (2)....................... 3/4 HP & 1/2 HP
GENERAL DATA
Overall height................................ 95 1/2"
Length and width of base floor................ 68" x 49"
Floor space (without coolant tank)............ 91" x 79"
Floor space (with coolant tank)............... 109" x 79"
Weight of machine, net(approx.)............... 10,500 lbs.
Gross weight crated(approx.).................. 11,500 lbs.
Gross weight boxed(approx.)................... 12,500 lbs.
EQUIPMENT & FEATURES
Auto loading & unloading
Mag. drive work head w/shoes
Red Head spindle
Call G.C.H. for all your Internal requirements!
Specifications are deemed accurate, however, subject to verification or prior sale.
