45M Bryant Lectro-Cam Chucking Centerless Grinder, Rotary Diamond Behind Wheel Dresser, Auto Load/Unload, 3-Jaw Chuck, A.B. PLC Controls, As Is
| Size Capacity | 1-1/4" | 1-1/4" |

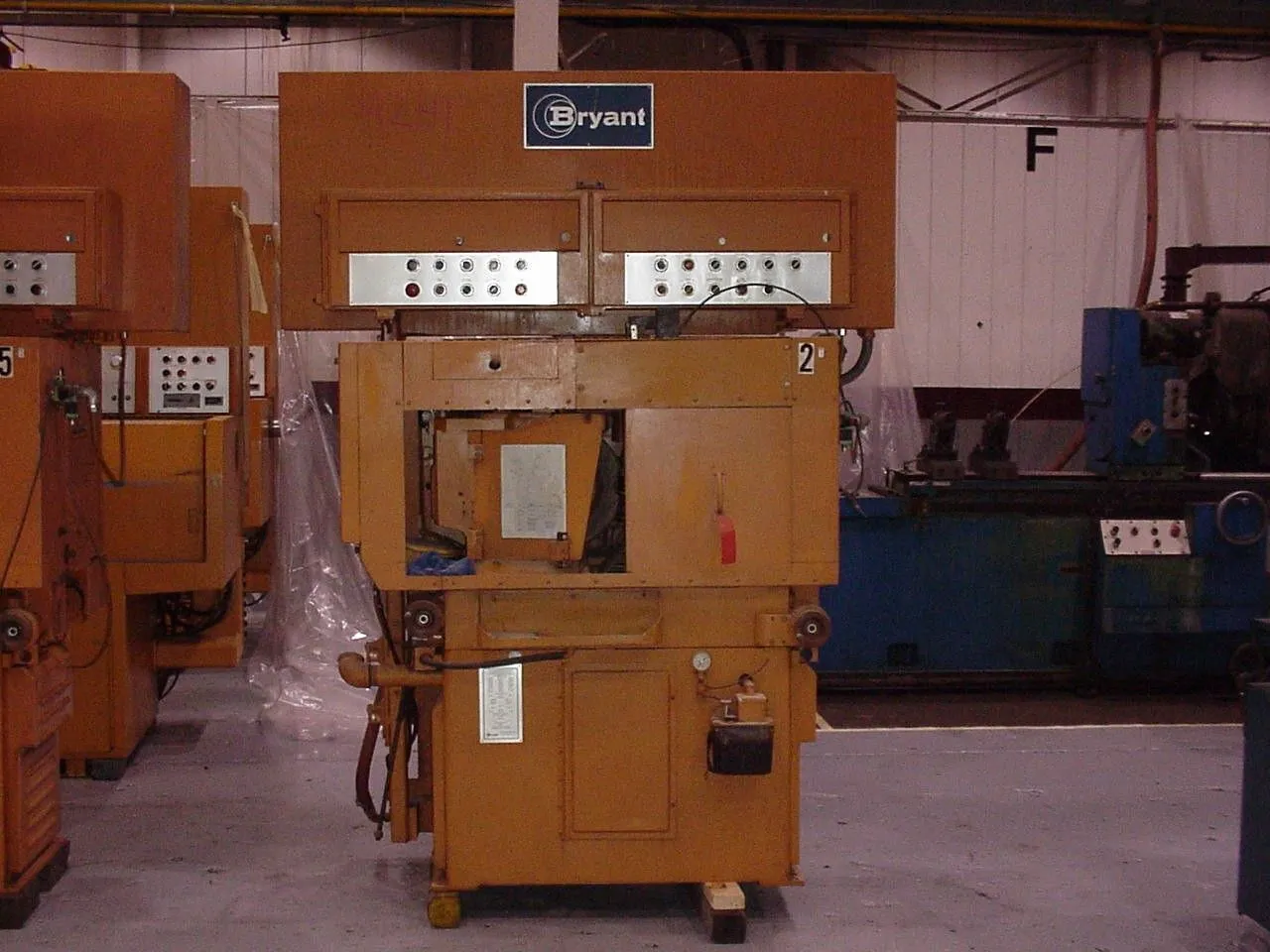

45M BRYANT LECTRO-CAM GRINDER
S/N B-16406 Year: 1982
STANDARD SPECIFICATIONS
Grinding wheel maximum size................... 14" x 5" x 5"
Work range (magnetic chuck drive)............. 875" to .125" diam.
Lectro cam feed:
Filed travel built into machine............... .100"
Fine feed..................................... .006" to .013"
Capacity of coolant tank...................... 22 gallons
Approximate net weight........................ 3,300 lbs.
Floor space w/coolant tank & electric panel... 60" x 41"
ADDITIONAL FEATURES3 Jaw chuck.
Rotary diamond dresser.
Auto loader.
NOTE: This machine has very little usage. This machine is equipped with an Allen Bradley PLC Control.
Specifications are deemed accurate, however, subject to verification or prior sale.
