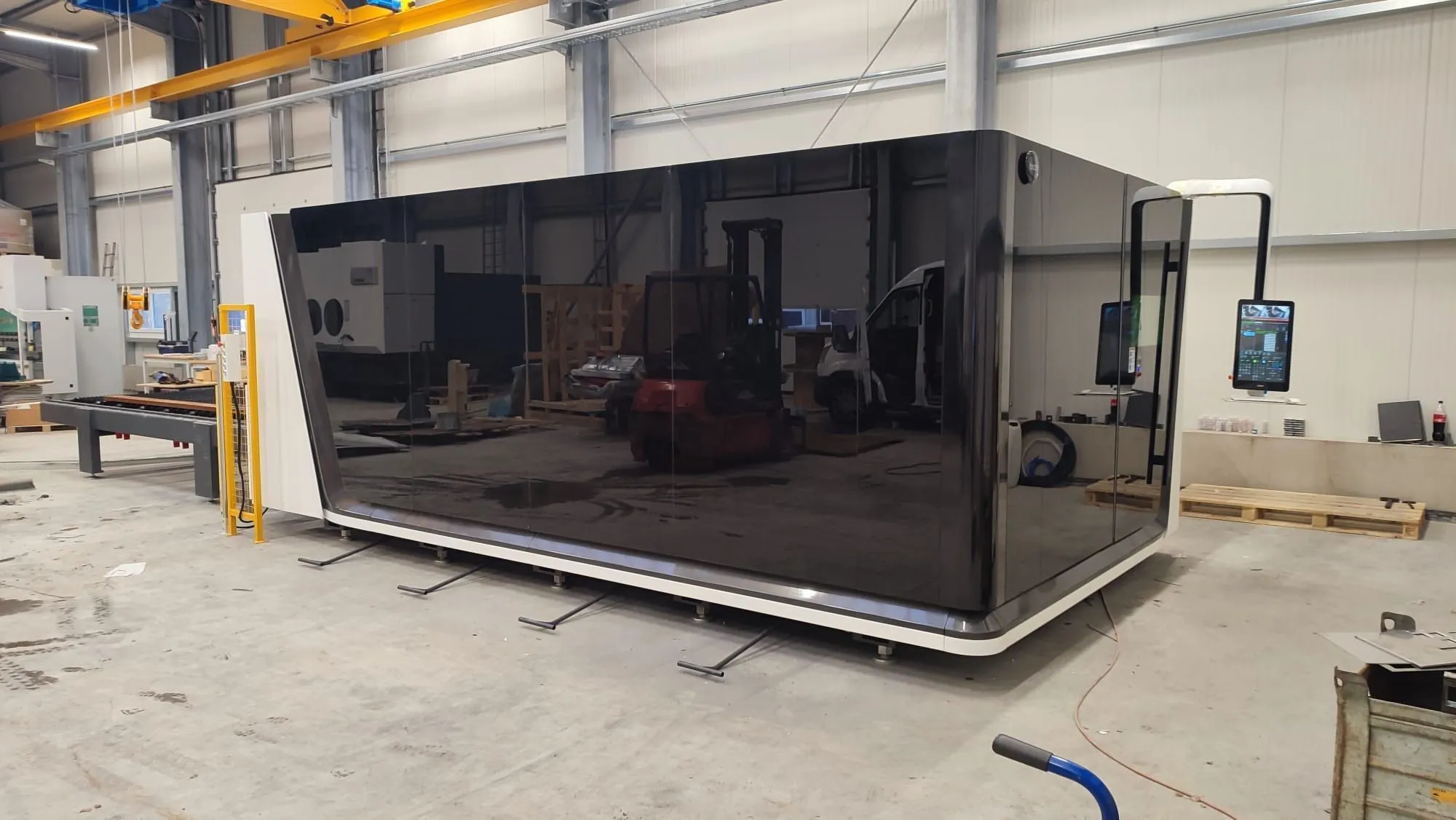

Bodor P4 Fiber Plate Cutting Laser, 20,000 Watt, 6 ft. x 13 ft. Cutting Area, 5 Year Warranty, Installation, Delivery and Training Included with Price, Bodor USA Headquarters in Chicago Area, In Stock in Chicago Area
Sheet-W | 78" | 78.74" |
Sheet-L | 157" | 157.48" |
Wattage | 12000 w | 12,000 W |
IPM | 7874 mpm | |
X | 4,000 mm | 157.48" |
Y | 2,000 mm | 78.74" |
Z | 315 mm | 12.402" |
Working Area: 157.48" x 78.74" (4000mm x 2000mm)
Laser Power Options: 3kw/6kw/12kw/24kw/30kw/60kw
Positioning Accuracy: +/- .0011968"
Repositioning Accuracy: +/- .001181
Max. Linkage Speed: 7874" per minute
Max. Acceleration: 4.0G
5 Year Warranty
Installation, Delivery and Training Included with Price
Fully Enclosed
Automatic Nozzle Changer
Active Obstacle Avoidance System
One-second Edge Finding
Visual Collision Avoidance
Bodor Nesting Software
Intelligent Remnant Layout
Excellent Bevel Cuts
