| Swing | 26" | 660.4 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 7" | 177.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 14.5" | 368.3 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 273″ x 91″ x 79″ High Approx. | 273″ x 91″ x 79″ High Approx. |
| Weight | 18,480 lbs Approx. | 18,480 lbs Approx. |

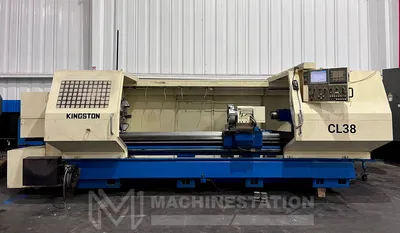

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Fanuc Oi-TC CNC Control
3,330 Hours Cutting Time
Coolant System
Capacity:
Max Turning Diameter: 14.5″
Max Turning Length: 120.0″
Max Bar Capacity: 7.0″
Swing Over Bed: 26.0″
Width of Bed: 18.0″
Distance Between Centers: 120.0″
Travels:
X-Axis: 21.2″
Z-Axis: 126.8″
Rapid Traverse X Axis: 394 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.3″
Spindle Speed: 3 - 1000 RPM
Spindle Motor: 30 HP
Turret:
No. of Turrets : 2 Turrets
Turret Type: V8 Hydraulic & H6 Servo (Std)
Tailstock:
Tailstock Quill Dia.: 5.9″
Tailstock Quill Stroke: 8.6″
Tailstock Taper: MT-5
General:
Power Source: AC 220 V, Three Phase, 60 Hz, 35 kva
Overall Dimensions: 273″ x 91″ x 79″ High Approx.
Weight : 18,480 lbs Approx.
21″ 4 Jaw Manual Front Chuck
21″ 4 Jaw Manual Rear Chuck
7.3″ Bore A2-15 Spindle
Tailstock
Dual Turret (V8 Hydraulic & H6 Servo)
Chip Pan and Chip Conveyor
MPG Handwheel Control
Foot Switch
Levelling Pads
