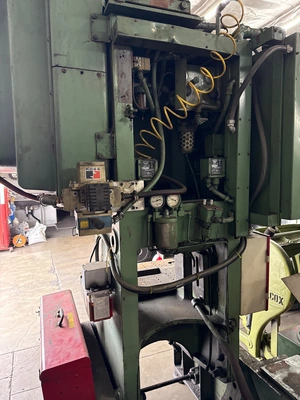

Bliss C-45 OBI Punch Press, 45 Ton, #7617 #1 by BLISS. Key specs: 45 Ton capacity, 3" stroke, 11.25" shut height, 5 HP Sterling AC motor, Bliss air clutch and brake. dimensions: 4'7" RL x 5' FB x 8'6" H.
| Tonnage | 45 T | 40.823 t |
| Stroke | 3" | 76.2 mm |
| Shut Height | 11.25" | 285.75 mm |
| Bed W | 18" | 457.2 mm |
| Bed L | 29.5" | 749.3 mm |
| SPM | 100 strokes/min. | 100 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
| Dimensions | 4'7" RL x 5' FB x 8'6" H | 4'7" RL x 5' FB x 8'6" H |
| Weight | 7,000 LBS | 7,000 LBS |
Bliss C-45 OBI Punch Press 45 Ton #7617 #1
SPECIFICATIONS:
CAPACITY: 45 TON
STROKE: 3″
RAM ADJUSTMENT: 3″
SHUT HEIGHT TO BED: 11.25″ STROKE DOWN ADJUSTMENT UP
BED AREA: 29.5″ RL X 18″ FB WITH 2.5″ THICK BOLSTER PLATE
RAM AREA: 15″ RL X 11.5″ FB X 2″ THICK
SPEED: APPROX. 100 SPM
DISTANCE BETWEEN UPRIGHTS: 14″
FLOOR TO BED: 36″ WITH 1.5″ ISOLATOR PADS
CLUTCH: BLISS AIR CLUTCH AND BRAKE
ELECTRICS: 5 HP STERLING AC MOTOR 220/440-3-60 900 RPM
APPROX. DIMENSIONS: 4’7″ RL X 5′ FB X 8’6″ HIGH
APPROX. WEIGHT: 7,000 LBS
EQUIPPED WITH:
WINTRESS AUTOSET 1500 LOAD ANALYZER
WINTRESS WPC 1000 CLUTCH/BRAKE CONTROL
DUAL PALM BUTTONS
BOLSTER PLATE
