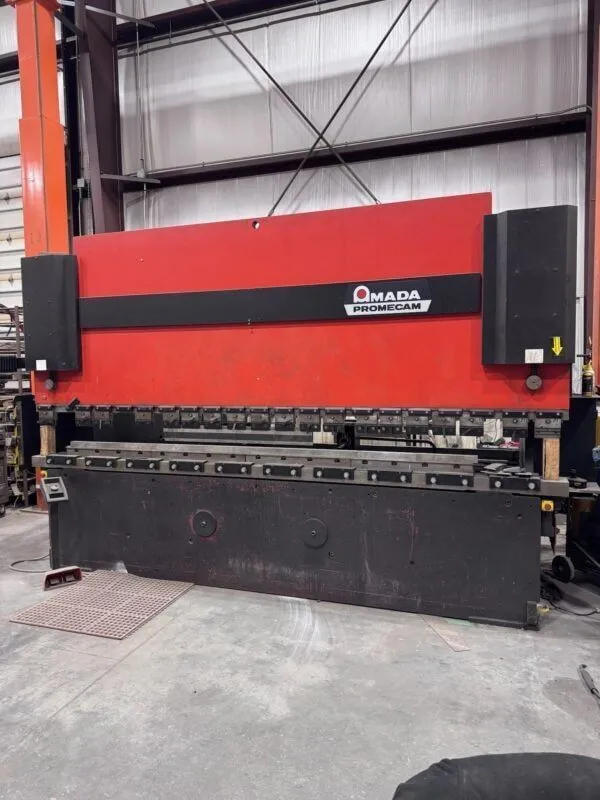

1993 AMADA Promecam HFB 1704, 187 Ton x 13' CNC Press Brake. Features 7-axis control, 5-axis backgauge, 25 HP motor, and tooling. Specs include 148” arm span and 240 IPM approach speed. Compact size, weighing 28,600 lbs, for precision work.
Tonnage: 187 Tons
Overall Length Bed/ Ram: 167.3”
Distance Between Housings: 148”
Open Height: 17.88”
Ram Stroke: 7”
Throat: 16.1”
Approach Speed: 240 IPM
Forming Speed: 223 IPM
Return Speed: 188 IPM
Bed Height: 37.4”
Back Gauge Travel: 27.6”
Main Motor: 25 Hp
Machine Dims: 179.5” X 85.8” X 115.7”
Weight: 28,600 lbs
Equipped With:
Amada Operateur Control (5-Axis Backgauge)
Tooling Included
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
