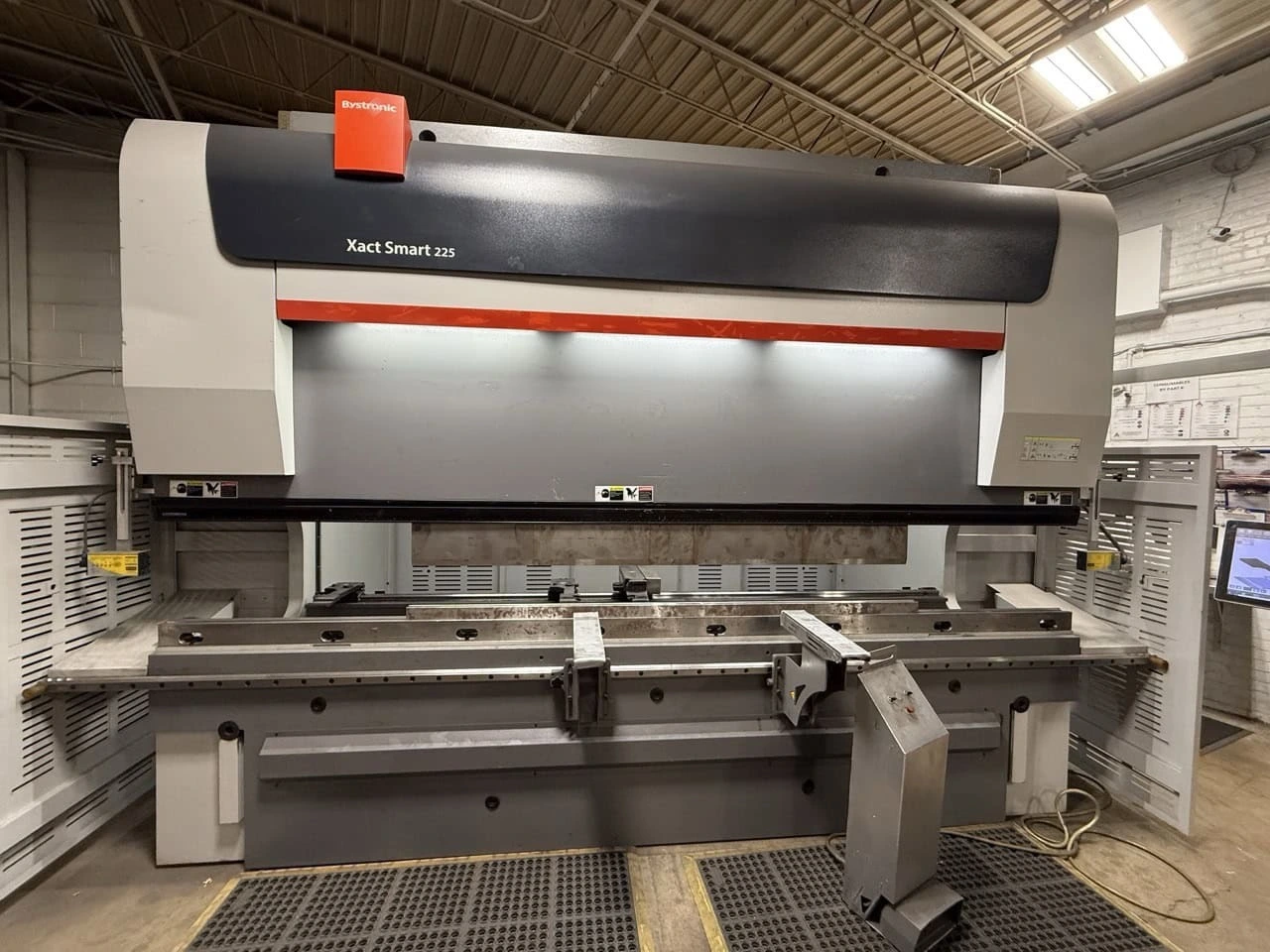

2017 Bystronic Xact Smart 225-4100 CNC Press Brake with 248T capacity, HYD, 5-axis backgauge. Features ByVision control, energy saver, tropical pack, LED illumination, and safety system. Power: 480V, 3-phase. Weighs 36,297 lbs. Ideal for precision bending.
| Tonnage | 225 T | 204.117 t |
| Type | HYD | HYD |
| Overall Length | 4,100 mm | 13.45' |
| Between Housings | 3,420 mm | 11.22' |
| Stroke | 200 mm | 7.874" |
Press Capacity: 225 tons
Working Length: 161.4″
Maximum Stroke: 11.8″
Rapid Approach Speed: 5.5″/sec
Working Speed: 0.04-0.39″/sec
Return Speed: 4.5″ inches/sec
Weight: 36,297 lbs.
Control: CNC with ByVision Bending Control with 22″ Full HD Display and Tough Technology
DNC Controlled Hydraulic Crowning
Hydraulic RFA style clamping
Backgauge: 5-axis
Productive Product Pack- Includes T12 with Hydraulic Lower Tool Clamping, H=90mm,
LED Illumination at the front and back,
Enlargement of daylight and Stroke by 100mm
5-Axis Backgauge (X, X1, R, Z1, Z2)
Energy Saver
Tropical Pack (Oil Cooling Unit, Heat Exchanger, assembled on the electric cabinet)
Additional Backstop Arm
Z-Axis Manually Adjusted
2- Manual Adjustable Front Supports, length 400mm
Table T5/90
Electrically interlocked side fences
Rear protection devices/ sliding door incl. interlocing switch
Control console with foot switch
Safety System: Fast Bend S (light curtain)
Power Requirements: 480V, 3-phase, 50 Hz
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
