The WDM 310 Series plate roll is built primarily for the sheet metal industry and small maintenance shops. The 310 has been simplified to a no hydraulic/all electric design. Both the roll drive and the power bending adjustment drive (optional) are powered by an electric helical gear motor.
| Length of Rolls | 5' | 1.5 m |
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Max Thickness (gauge) | 16 gauge | 16 gauge |
| # Rolls | 3 | 3 |

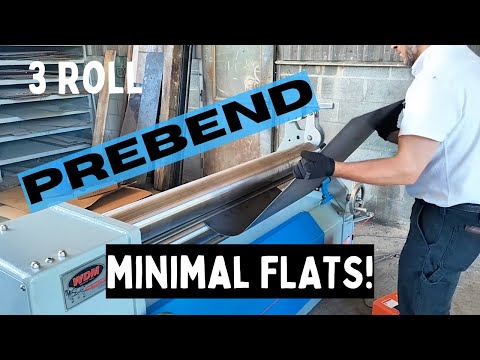

WDM Model 310-3.5-60 Electric Initial Pinch Plate Bending Rolls, with (5ft x 10ga) capacity and CMI package
Description: Model 310-3.5-60, 5 ft x16 Ga Powered Initial Pinch Roll w/ CMI Pkg (Cone Attachment, Hardened & Polished Rolls [55-60Rc], Circular Groves, Electric Digital Readout for Bending Roll Position)
Capacity Rating:
60” x 16 GA prebend capacity
*see attched capacity chart
Top Roll Diameter: 3.5”
Motor HP: 1.5
Rolling speed: 0-20 FPM
Electrics enclosures: 12 NEMA, NFPA 79 specifications
Motor: 1.5 HP, 230, 3-phase, 60 hertz electrics
Dimensions: 80″ Length x 29″ Deep x 40" Height
Approximate weight:1,400 lbs.
- Hardened & Polished Rolls (Incl.)
- Cone Attachment (Incl.)
- Circular Grooves (Incl.)
- Electric Digital Readout
- Wired for 230v/3ph.
(1) Available as of February 1, 2025
* Subject to prior sale
SUPPORT OPTIONS:
- Free telephone support with tech for set-up
- Free training at WDM Facility in Moorefield, WV
- On-site training by factory tech (+$3,000)
TERMS:
FOB Parkville, MO, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment for stock machines. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
