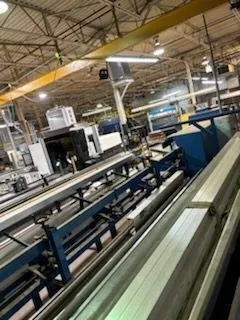

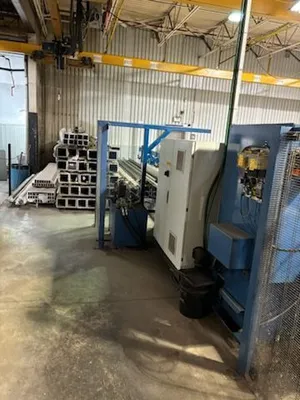

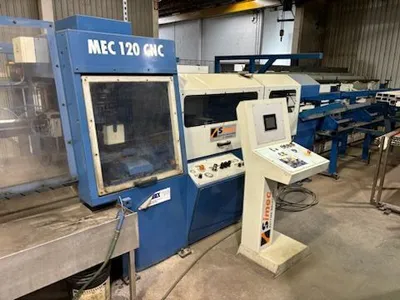

SIMEC MEC 120 CNC saw, 2019 model, used. Ideal for diverse cutting needs, this advanced CNC saw ensures precision and efficiency for a wide range of sawing applications. Perfect solution for workshop upgrades or replacements.
Round Tube: from 10mm to 100mm (0.394" - 3.94")
Square Tube: from 10 x 10mm to 90 x 90mm (0.394" x 0.394" to 3.54" x 3.54")
Rectangular: from 10 x 10mm to 120 x 80mm (0.394" x 0.394" to 4.7" x 3.15")
Bar: from 10mm to 40mm (0.394" - 1.58")
Minimum cut length: 10mm (0.394")
Maximum cut length: up to 3000mm (up to 118")
Cutting tolerance: +/- 0.2mm (0.008")
Angle cut: +/-60°
Blade diameter: from Ø250mm to Ø350mm (9.84" - 13.78")
Cutting speed: from 30rpm to 3000rpm, depending on the material
Feeding speed of the gripper: 1.5m/s (4.9 ft/sec)
Blade motor: 2.25/ 3kw (or 4kw with inverter)
Cutting plane height: 900mm (35.4")
Maximum vice opening: 130mm (5.12")
Straight or angle cut of tubes from minimum ø 10mm to max ø 100mm (0.394" - 3.94")

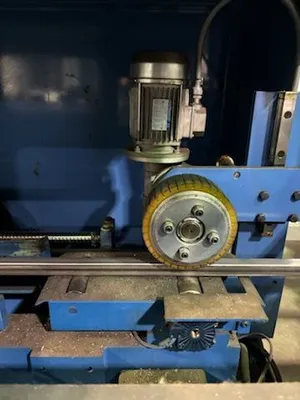

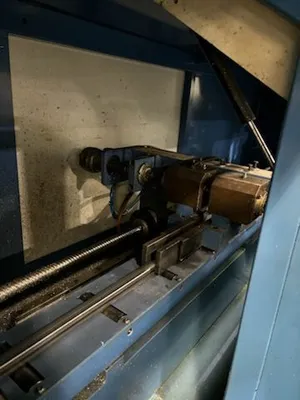

Step by step feeding of the gripper: stroke 2000mm (78.74") through ball screw and Motor Brushless
Automatic positioning of the feeding gripper length
Quick release vice jaws for rapid tooling changes

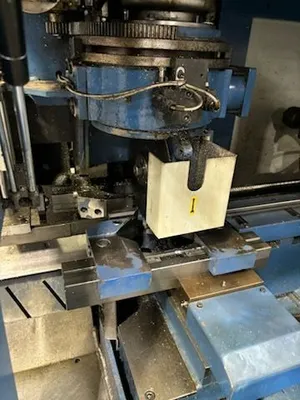

Double clamping vices, on both sides of the saw blade
Hydraulic clamping vice and gripper

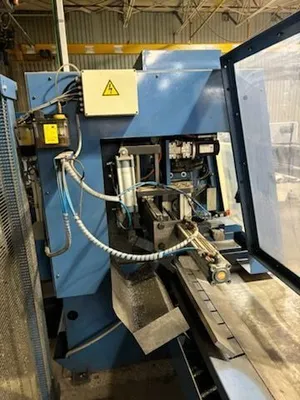

Vertical cutting descending from above saw head mounted on prismatic guides tempered and ground
Discharge systems with unloader cylinder plus deflector
Auto Feed
CNC Control
Tooling

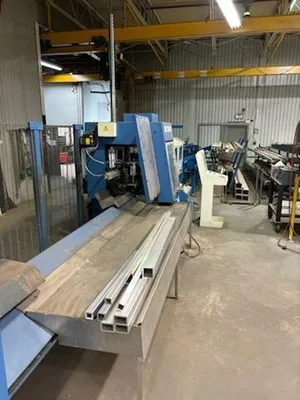

Exit System
Less than 1000 hours total of usage
