| Swing | 27.36" | 694.94 mm |
| Machining Length | 20.16" | 512.06 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.05" | 52.07 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol SmoothG) | CNC (Mazatrol SmoothG) |
| Dimensions | 110" x 72" x 73" High Approx. | 110" x 72" x 73" High Approx. |

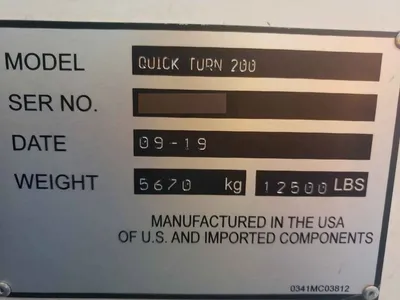

| Weight | 12500 lbs | 12500 lbs |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Mazatrol SmoothG CNC Control

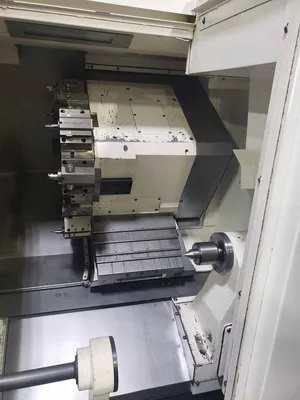

12 Station Automatic Turret
Automatic Lubrication System
Capacity :
Maximum Swing over Bed : 27.36"
Maximum Turning Diameter :13.78"
Maximum Turning Length : 20.16"
Maximum Bar Capacity : 2.05"
Travels :
X-Axis Travel : 8.86"
Z-Axis Travel : 21.06"
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1299 IPM
Spindle :
Spindle Nose : A2-6 ?
Spindle Bore : 2.55"
Spindle Speed : 5000 RPM
Spindle Motor : 35 HP
Turret:
Capacity : 12 Station
Holders Type : BMT
Tailstock:
Taper : MT-5
General :
Power Source: 40 kva / 3-Phase / 60 Hz
Machine Dimensions: 110" x 72" x 73" High Approx.
Machine Weight :12,500 lbs.
8" 3- Jaw Kitagawa Chuck
Royal Quick Change Collet System
Tool Presetter
Part Catcher
Tailstock
Chip Conveyor
Misc. Tooling
