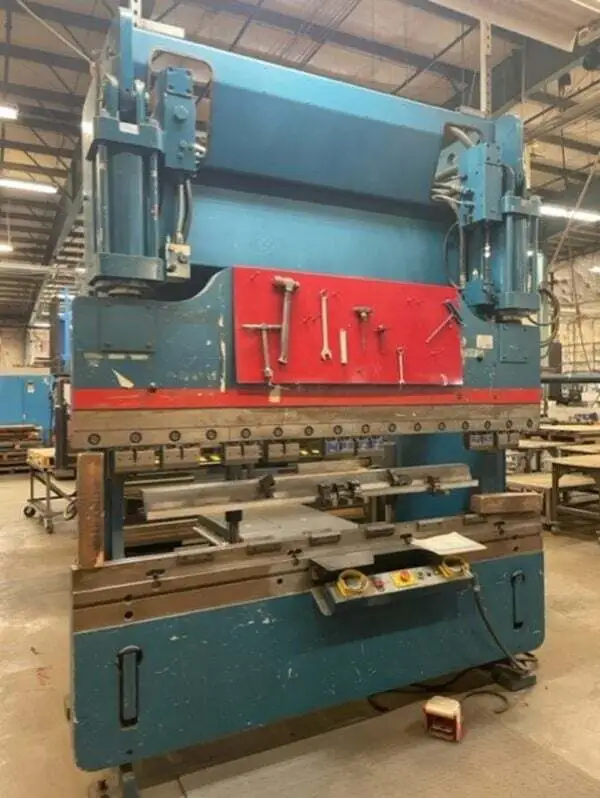

1997 Cincinnati 90CBII-6 Hydraulic Press Brake offers 90-ton capacity and 8’ length. With a 14” stroke and 21” open daylight, it features 2 backgauge axes and adjustable ram speeds. Approx. dimensions 102”x60”x112”, weighing 12,000 lbs.
Capacity…………………………………… 90 Tons
Overall Length:…………………………. 8’
Between the Housings:…………….. 6’
Stroke:……………………………………….14”
Open Daylight:………………………….. 21”
Closed Daylight…………………………. 7”
Bending Capacity:……………………….5’ x ¼”
………………………………………6’8” x 3/16”
Ram Speed………………………………….Approach 200 IMP
Bending High: 55 IPM
Bending Medium: 20 IPM
Bending Low: 5 IPM
Return: 185 IPM
Backgauge Range:………………………24”
Number of Backgauge Axis:……… 2
Dimensions: ………………………………. 102” x 60” x 112” High
Weight Approx. …………………………. 12,000 Lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
