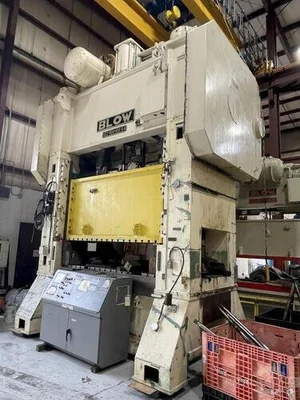

800 ton Blow Press Model SC2-800-108-54 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 1995, Rebuilt in 2016
| Tonnage | 800 T | 725.749 t |
| Stroke | 10" | 254 mm |
| Shut Height | 38" | 965.2 mm |
| Vari Speed (Yes/No) | Yes | Yes |
| Bed W | 54" | 1,371.6 mm |
| Bed L | 108" | 2,743.2 mm |
| Crank (Single/Double) | Single | Single |
| Air Clutch (Yes/No) | Yes | Yes |
Tonnage: 800
Stroke: 10 inches
Shut Height: 38 inches
Adjustment: 10 inches
Bed Size: 108" LR x 54" FB
Ram Area: 108" LR x 54" FB
SPM: 8-22 VSPM
Standard Specifications800 ton Blow Press Model SC2-800-108-54Used Straight Side Double Crank PressProfessionally Rebuilt in 2016800 ton Capacity10" Stroke38" Shut Height On Bed32" Shut Height Over Bolster10" Motorized Adjustment108" LR x 54" FB Bed Area108" LR x 54" FB Slide Area8-22 VSPMEquipment and FeaturesAir Clutch and Brake Air CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster42" Wide WindowsT-Stand Palm ButtonsHydraulic Tie Rod Nuts Hydraulic OverloadsWintriss Die Pro 1500 PLC ControlLight CurtainsFloor Standing
This Used 800 ton Blow Straight Side Mechanical Press an be seen under power in the S&G Press Livonia MI Warehouse!Click for more 800-ton Press Options.
Explore a robust used 800 ton Blow straight-side mechanical metal stamping press for sale. This powerful used Blow press, model SC2-800-108-54, manufactured in 1995 and rebuilt in 2016, offers significant capacity for demanding metal forming applications. Featuring a substantial bed size, this used 800 ton press is ready to enhance your production line. S&G Press offers this quality used straight-side press, providing a cost-effective solution for high-tonnage stamping needs. Inquire about this used Blow press for sale today and boost your manufacturing capabilities
