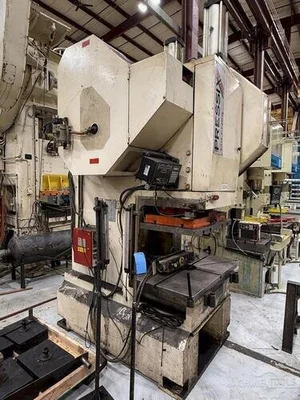

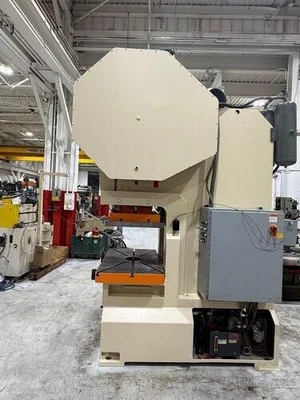

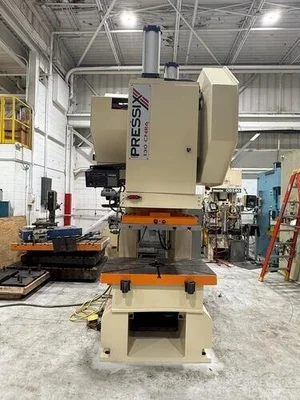

130 ton Pressix Adjustable Stroke Metal Stamping Gap Frame Back Geared Press, Year 2006
Tonnage: 130
Stroke: 6.3 inches
Shut Height: 16.9 inches
Adjustment: 4.3 inches
Bed Size: 47 x 30
Ram Area: 31.5 x 21.6
SPM: 27-80
More Specifications to Follow:New to Inventory130 ton Capacity (Metric)
Variable Stroke Length: .5" to 6.2" Motorized Adjustment: 4.3" Die Height 16.9" on Bolster PlateFORCE kN 1.300
NOMINAL SPEED Spm 48
FIXED SPEED Spm 60
VARIABLE SPEED Spm 27 - 80
STROKE LENGTH mm 13 - 160
SLIDE ADJUSTMENT mm 110
SHUT HEIGHT mm 430
BOLSTER AREA mm 765 x 1.200
BOLSTER HOLE mm 165
SLIDE AREA mm 550 x 800
SLIDE HOLE mm 60
THROAT DEPTH mm 405
POWER kW 15
APPROXIMATE WEIGHT kg 13.000
OVERALL DIMENSIONS (LxPxH) mm 1.780 - 2.540 - 3.460Features: Air Clutch and BrakeAir CounterbalancesLubrication SystemT-Slotted Plate on RamEasily Adjustable Stroke LengthWintriss WPC 2000 Press ControlVibro Dynamic Floor PadsThis used Pressix Single Point Gap Frame Press can be seen underpower in the S&G Press Livonia Warehouse.Click this link for more Single Point Gap Press Options
