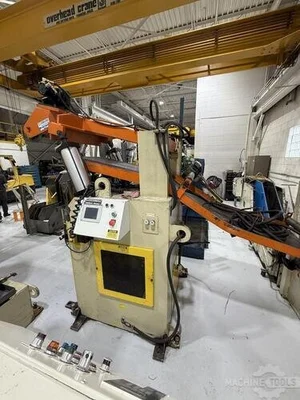

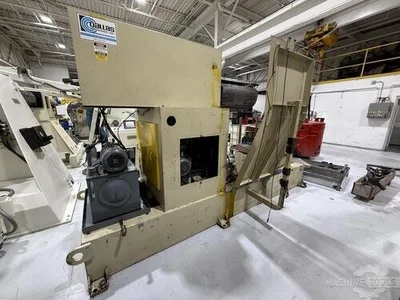

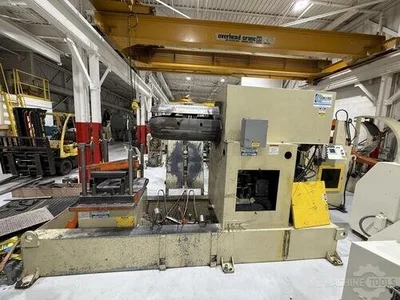

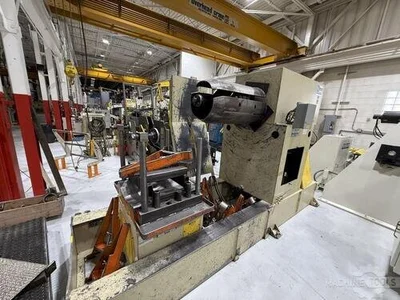

10,000 lbs. x 24" Dallas Motorized Coil Reel with Car and Peeler, Threader and Hold Down Station, Year 1995
Coil Weight: 10000 pounds
Coil Width: 24 inches

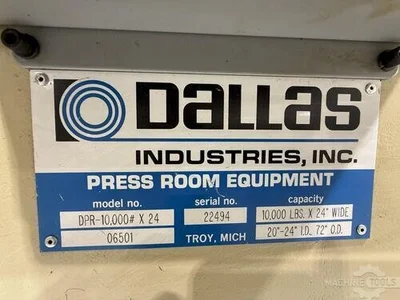

Preliminary SpecificationsDallas Motorized Reel With Coil Car Model DPR-10,000 x 24Serial Number 2249410,000 lbs. Maximum Coil Capacity24" Maximum Coil Width20"-24" I.D. Range72" Maximum Coil O.D.10,000 lbs. Capacity Coil Load Car
Dallas Ind. Motorized Coil Reel Un-coiler Equipment and Features:
Three leaf mandrel coil reel
Hydraulic mandrel expansion
Stand alone hydraulic unit
Traveling coil load car
Powered lift and travel
Motorized payout
Variable speed drive
240/480 Volt
Jog forward and reverse
Auto/Run cycle
Loop control
Dallas Industries Model PTR-10000x24Serial Number 22496Peeler, Threader and Hold DownAir operated coil hold down arm
