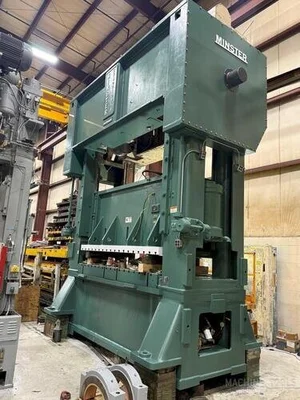

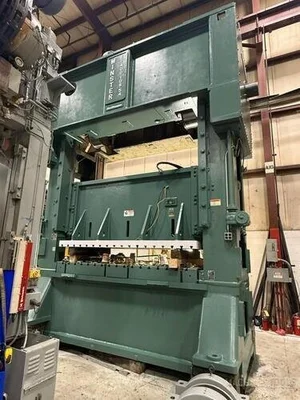

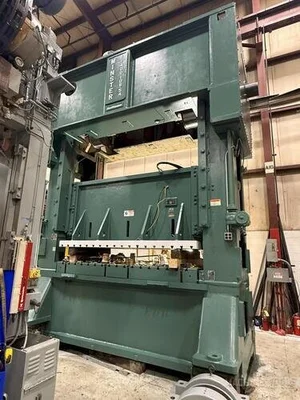

400-ton Minster E2-400-108-54 Hevi-Stamper Progressive Die Metal Stamping Press, Rebuild in Process
Tonnage: 400
Stroke: 14 inches
Shut Height: 40 inches
Adjustment: 10 inches
Bed Size: 108" x 54"
Ram Area: 108" x 54"
SPM: 20-40 VSPM
400-ton Minster Straight Side Mechanical Metal Stamping PressModel Hevi-Stamper Press Model E2-400-108-54 Serial Number E2-400-16968400-ton Capacity14" Stroke40" Shut Height on Bed31" Die Height on Bolster10" Motorized Adjustment108" LR x 54" FB Bed Area108" LR x 54" FB Slide Area20-40 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesSingle Geared - Twin End Drive3 Crossbar Knockouts in Ram8 Adjustable Bronze Lined GibsRecirculating Lube System9" Thick Bolster PlateT-Slotted Ram and BolsterHydraulic Tie Rod NutsDual Ross Air ValveDistance Floor to Top of Bed: 33"8 Point GibingMotors and New Electrical Controls 38" wide WindowsFloor StandingPrice included "New" well equipped Toledo Press Controls (other Control Brand Options available upon request) This 400-ton Minster Hevi-stamper Mechanical Metal Stamping Press is currently in process of being fully rebuilt with new electrical controls. Please ask your salesperson for more details and a full scope of work. Upon completion of Rebuild this 400-ton Minster Hevi-Stamper can be seen under power in the S&G Press Livonia Michigan Warehouse!Click for more 400-ton Press Options.Rebuilt 400-ton Minster Hevi-stamper Press For Sale, Straight Side Mechanical Presses, Used Presses, Minster Press, Rebuilt / Reconditioned Presses
