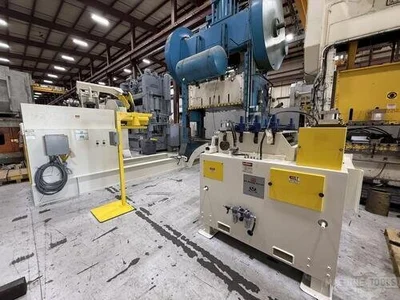

20,000 lbs. x 36" CHS Automation Metal Stamping Servo Coil Feed Line, Year 2005
Coil Weight: 20000 pounds
Coil Width: 36 inches
Coil Thickness: .125 inches
Preliminary SpecificationsUsed CHS Automation Servo Coil Feed LineCoil Handling Systems Model# DR-200-36 & DRFS-5Motorized Coil Reel with Combination Servo Feed and Straightener20,000 lbs. Maximum Coil Capacity36" Maximum Coil Width.125" Material Thickness @ 36" Coil Width20-24" I.D. Expansion Range72" Maximum Coil O.D.

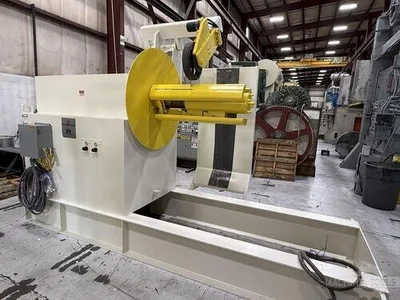

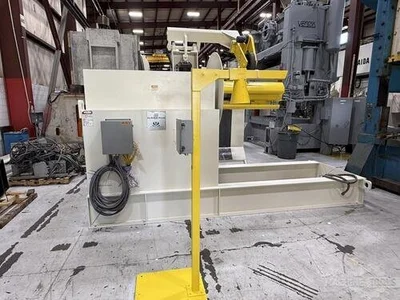

CHS Automation Motorized Coil Reel, Model No.: DR-200-36, Serial No.: 5304
Three leaf mandrel coil reel
Hydraulic mandrel expansion
Stand alone hydraulic unit
Air operated coil hold down arm
Motorized payout
Variable speed drive
Jog forward and reverse
Auto/Run cycle
Loop control
CHS Automation Exit Threading Table
Single Side Bombay door design
Air actuated

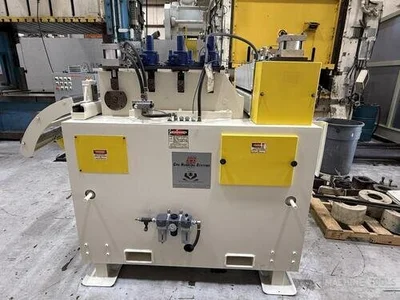

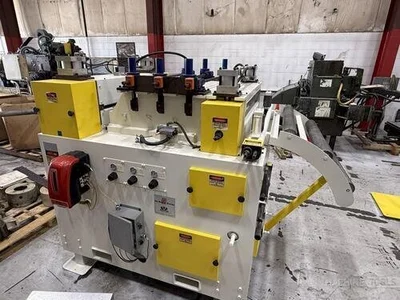

CHS Automation Servo Roll Feed Straightener Combination, Model No.: DRFS-5, Serial No.: 5305
5 Inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Air pressure / regulators
CHS Automation pull thru straightener
Straightening rolls x 3.5" diameter
Individual upper straightening roll adjustments
Pinch roll assembly for stock threading (hand crank)
Cascade loop support rollers
Stock width edge guides
AC servo roll feed drive and controls
Job memory storage
480 VoltSpace Saver Servo Coil Feed Line
