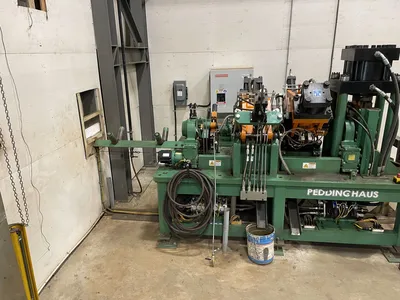

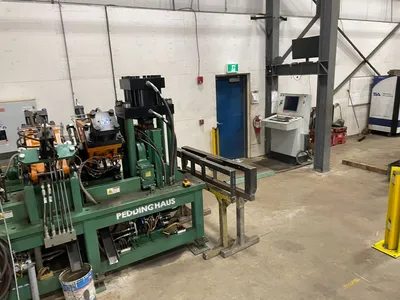

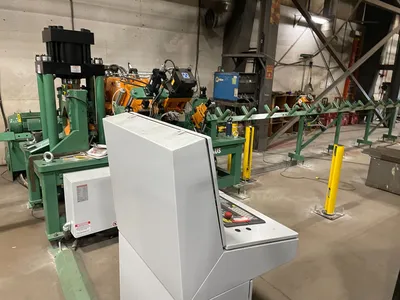

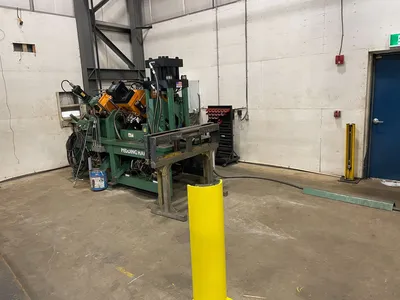

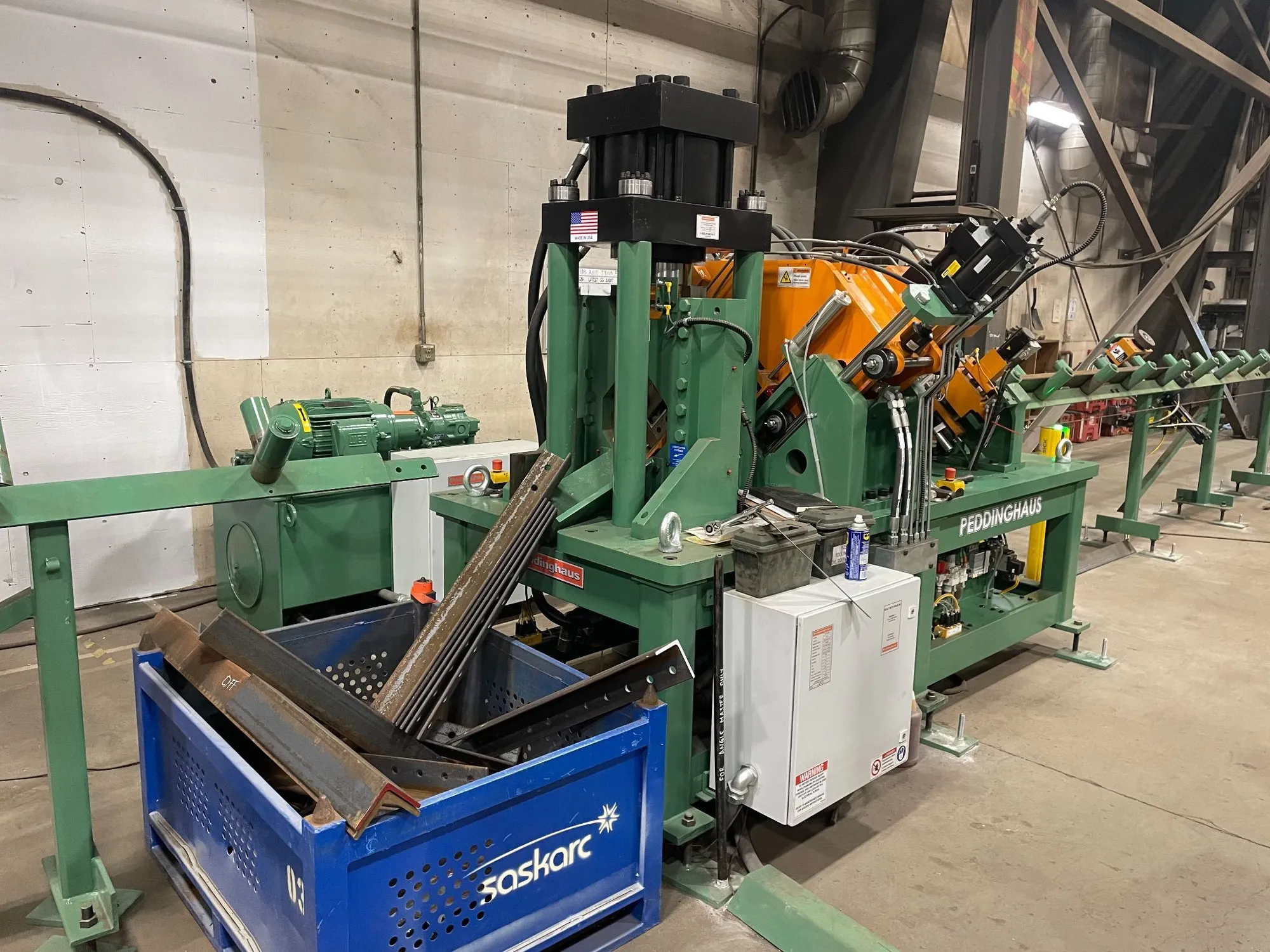

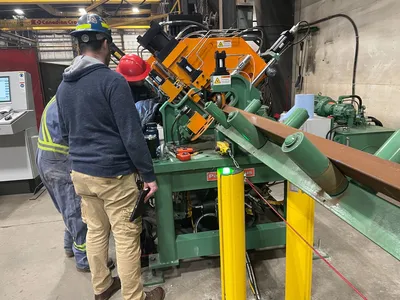

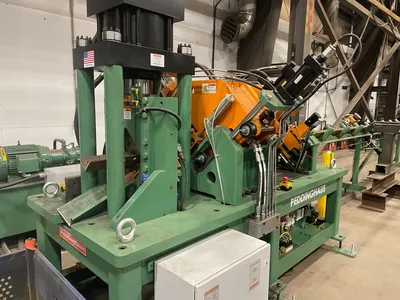

USED 2022 PEDDINGHAUS ANGLEMASTER 643

Overview
Manufacturer:
PEDDINGHAUS
Year:
2022
Stock #:
1271
Status:
For Sale
Description

This machine is under power and can be inspected. A factory-trained technician can be provided at extra cost for installation & operator training.

Specifications
Maximum Angle Size6"x6"6"x6"
Minimum Angle Size1-1/2" x 1-1/2"1-1/2" x 1-1/2"
Maximum Flat Bar Size6"6"
Single Cut Shear Tonnage208 Tons208 Tons
Punch Tonnage66 Tons66 Tons

Anglemaster-643/Q Capabilities:

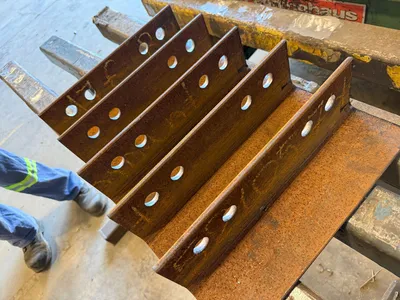

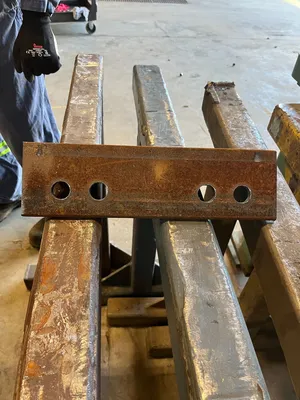

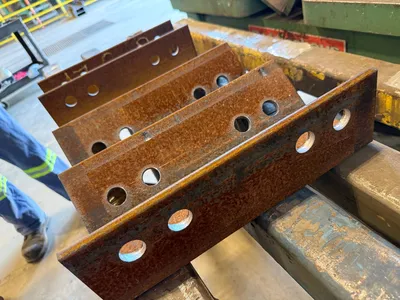

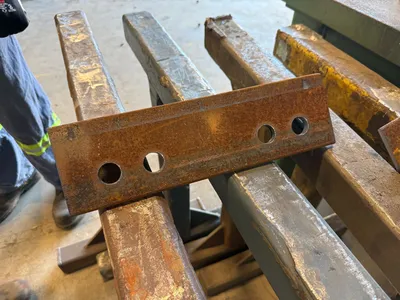

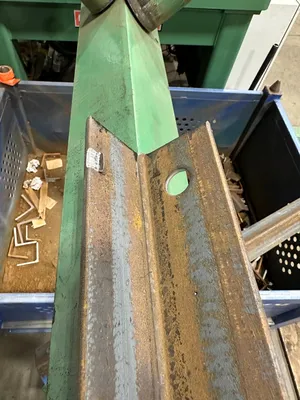

-Punching
-Shearing
-Scribing
-Hard Stamping

Acceptable Material Types: • Angle • and Flat Bar

Punch Specifications:

Capacity: 73 US tons (66 metric tons)
Maximum Hole Size:
271/272 Tooling: 1.25" (31.75 mm)
282 Tooling: 1.5" (38.1 mm)
PFP #3 Tooling: 1.06" (27 mm)

Shear Specifications:

Single Cut Shear Tonnage: 229 US tons (208 metric tons)

Equipped With

- Powered Material Advance (PMA) device automates the movement of material placed within its clamp for optimal material handling. Following the loading of profiles onto the infeed, the PMA is capable of moving the material in both the positive and negative x-direction using the control console of the machine.

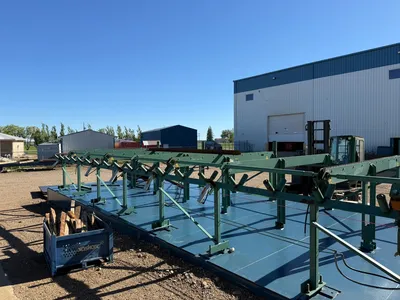

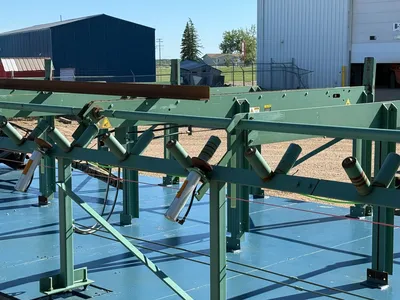

-40' Infeed Angle & Flat Stock Loading System with 5 Stands

The angle and flat stock loading system comes complete with the appropriate cross-transfer and material storage stands. Each 3.6 Meter stand is equipped with a motorized roller chain assembly for powered
advancement of flat bar or angle to the machine load position. Mounted on the Anglemaster-643 infeed
conveyor opposite each loading stand is a pneumatic indexing assembly designed to gradually lower the next stock length into the infeed conveyor system.
