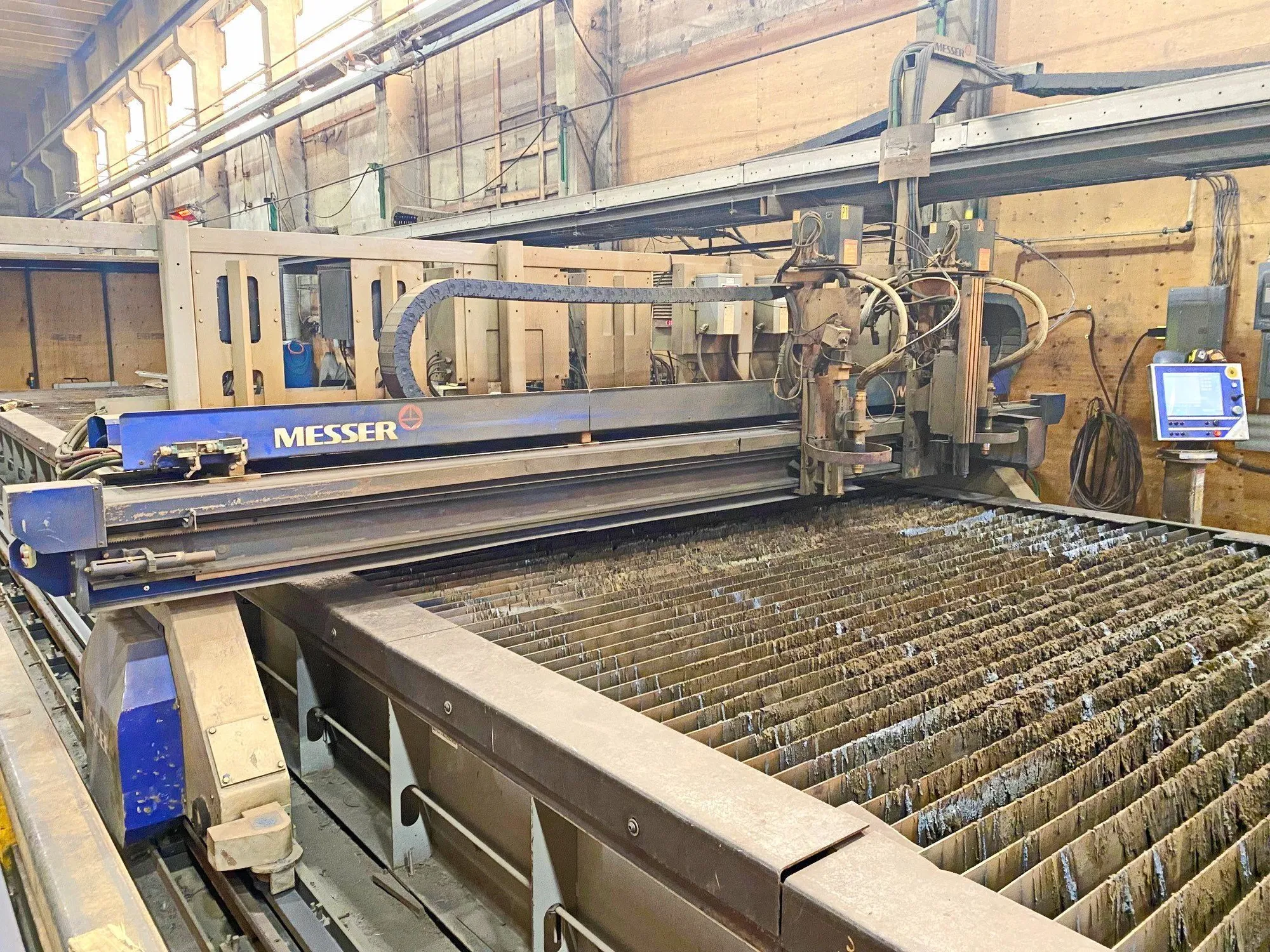

2009 Messer MPC2012P Dual-Torch CNC Plasma Cutting Machine, HyPerformance HPR400XD Power Supply, Slagger Table, Dust Collector, Drilling, Tapping, Collision Sensor
| Plasma Power | 800 a | 800 A |
| Table-W | 12' | 3,657.6 mm |
| Table-L | 75" | 1,905 mm |
| Rail Gauge | 180" | 4,572 mm |
| Max Plate Thickness | 8" | 203.2 mm |
| Clearance Under Gantry | 288" | 7,315.2 mm |
| # Plasma Torches | 2 | 2 |
| Cutting Speed | 400 ipm | |
| Rapid Traverse Speed | 1400 ipm | |
| Positioning Accuracy | 0.01" | 0.254 mm |
| Max Number of Tools | 24 | 24 |
| Max Torch Bevel Angle | ±45° | ±45° |
| Repeatability | 0.003" | 0.0762 mm |
| Made In | United States | United States |
| Control | CNC (Messer Global) | CNC (Messer Global) |
Dual-plasma torches

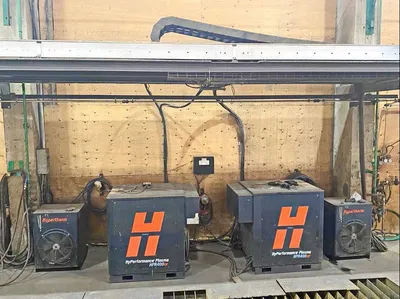

(2) HyPerformance HPR400XD power supply (400 A)
Slagger table (smoke & slag removal)
Dust collector
Drilling up to ⌀2.5"
Tapping up to ⌀1.5"
SureStop collision sensor
