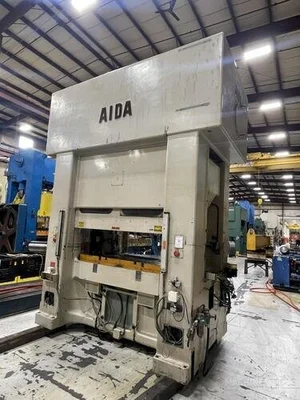

300-ton Aida PMX-L2-300(1) Used Straight Side Mechanical Stamping Press For Sale, "New" Press Controls Included. Year 1990
Tonnage: 300
Stroke: 7.87 inches
Shut Height: 31.4 inches
Adjustment: 3.03 inches
Bed Size: 72.83" x 39.3"
Ram Area: 72.8" x 34.64
SPM: 30-80 VSPM
Standard SpecificationsUsed Aida PMX-L2-300(1)Serial Number 12903-0230Progressive Die Link Drive Stamping Press300-ton Capacity (Metric)330-ton US Capacity7.87" Stroke31.4" Shut Height to Bed19.6" Die Height to Bolster3.93" Adjustment72.83" LR x 39.3" Bed Area72.83" LR x 34.6" Bolster Area30-80 VSPMEquipment and FeaturesAir Clutch and BrakeProgressive Link Motion Drive - Reduces Snap-through- Increases Time in the Forming Portion of StrokeDynamic Slide BalancingAutomatic Recirculating Lube SystemHydraulic Overload Protection8-Point Oil Film Slide Guide SystemMicro Inch Capability50 HP Main Motor, 460V 60HZ11.8" Thick T-Slotted BolsterT-Stand Palm Buttons35.5" Wide WindowsSafety Doors Front and BackFlush Floor Standing Price includes "New" Toledo Integrated System - DPPlus 2.0 Total Press Control with 10" DPPlus Color Touch Screen - For A Complete List of Included Toledo Control Options or Additional Press Control Manufacturer Options Please contact your salesperson. Weight 101,400 lbs.Overall Height: 15' 2" TallShipping Dimension: 11' 6" Wide This Used 300-ton Aida PMX Press can be seen underpower in the S&G Press Livonia Michigan Warehouse.More 300-ton Presses For Sale:This 1990 Aida PMX-L2-300(1) is a used 300-ton straight side mechanical stamping press, now available. It boasts a 7.87-inch stroke, a 31.4-inch shut height, and a substantial bed size of 72.83 by 39.3 inches. Notably, the press comes with brand-new press controls, enhancing its operational capabilities. Located in Livonia, Michigan, this machine offers a robust solution for demanding metal stamping applications.Aida Link Drive Metal Stamping Press For Sale, Straight Side Mechanical Press, Used Presses, Aida Presses.
