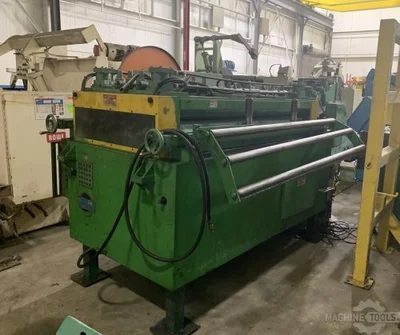

72" W. x COE Model# CPFS - 3.5-72 Servo Feed Straightener
Coil Width: 72 inches
Coil Thickness: .080 inches
Standard SpecificationsModel No. CPFS-305-7272" Max Material Width.080" x 72" Maximum Material Thickness .030" x 72" Minimum Material ThicknessUp to 80 FPM Payoff RateEquipment and FeaturesFlat Top Design7 Roll, 3 Inch Diameter Design With 5" Feed RollsIndependently adjustable breaker rolls1 ton screw jacksEntrance and exit cluster gear driven pinch rollsAir operated entrance and exit pinch rolls -Pinch Rolls raise and lower with 5" bore cylindersPressure regulators and flow controls on pinch roll cylindersPush button- solenoid operated control valvesElectrical safety disconnectCentral point lube systemDouble row upper and lower breaker roll backup rollersCrodon coated upper and lower entrance feed rolls with #5 Satin finishCrodon coated upper and lower exit feed rolls with #5 Satin finishEntrance edge guide with self centering hand crank adjustmentHeavy duty cabinet base with +/- 4" of height adjustment3 roll entrance catenary support sectionServoMaster Controller:. Serial communication capability to press or host devices. Ergonomic desk-type slant top industrial electrical console. Feed length setting from .001" to 999.999". Batch counter to 999,999 cycles with output. Remote jog with hand held pendant for threading. 100 job memory storage capacity. Inch or metric programming. Tight loop detection input. 15 HP AC variable speed drive- ABB with encoder for positioningFeed Direction: Left to Right460 Volt Three phasePassline Height: 50" +/-4"
