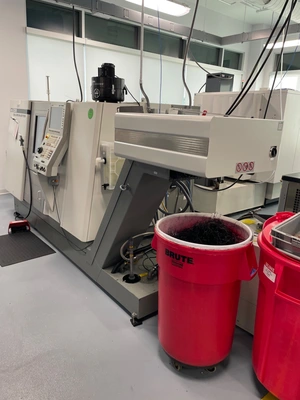

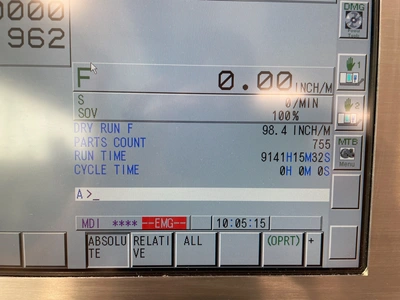

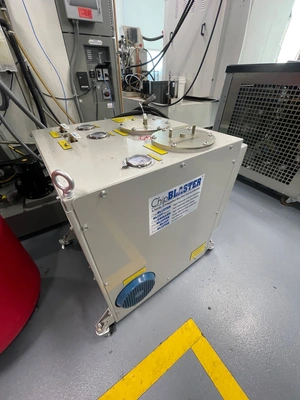

This 2008 Gildemeister CTX 310 is equipped with a Fanuc 32i controller, 12 station turret, Y axis, Live tooling, high pressure pump, has a chip conveyor, tail stock, and touch probe. This will come with a ton of turret tooling! Hainbuch chuck not included (it was already sold).
More pictures coming soon.
**This equipment is being sold as is and has no guarantees or warranty. Information is accurate to the best of our knowledge but it is up to the buyer to verify all specs and claims. Shipping is not included.**

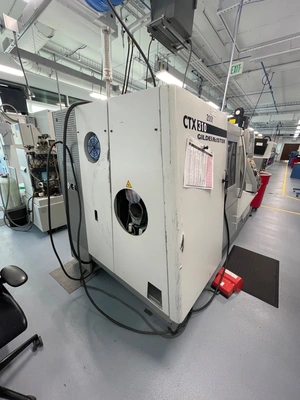

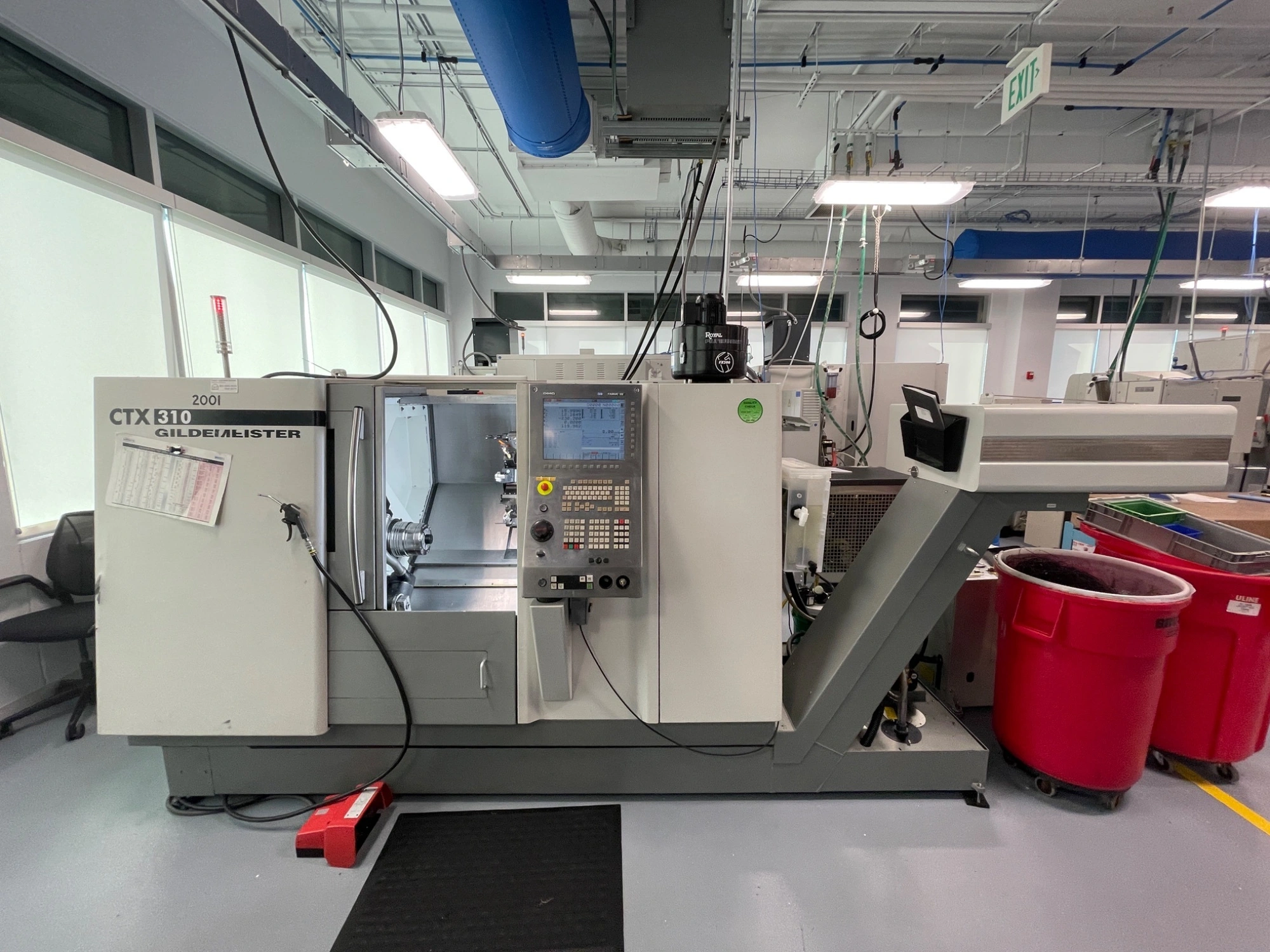

DMG Gildemeister CTX-310 CNC Lathe, Y-axis, Sub-Spindle, Live milling, C-axis
Brand : DMG
Model : CTX-310
Year Of Manufacture : 2008
Description : DMG Gildemeister CNC Lathe, Y-axis, Sub-Spindle, Live milling, C-axis Model CTX-310
Specifications
Chuck Dia :
Control : Fanuc
Live Tooling : Yes
Machining Length : 17.72 inch
Max RPM : 6000
No. of Axis : 4
Power : 32.18 HP
Swing : 19.69 inch
Tailstock
Description
DMG Gildemeister CNC Lathe, Y-axis, Live milling, C-axis
Model CTX-310
Technical Specifications (Subject to verification)
Capacity
Max swing over bed : 500 mm (19.6 in)
Swing over cross slide : 375 mm (14.75 in)
Bar capacity : 50.8 mm (2 in)
Clamping chuck diameter : 170/210 mm (6.69/8.2 in)
Clamping chuck diameter backspindle : 165 mm (6.49 in)
Transverse stroke : 202 mm (7.9 in)
Longitudinal stroke : 450 mm (17.7 in)
Y-axis stroke : +/-40 mm (1.57 in)
Feed drive
Rapid traverse X/Z axes : 24/30 m/min (787/1181 ipm)
Rapid traverse Z2/Y axis : 30/10 m/min 1181/394 ipm

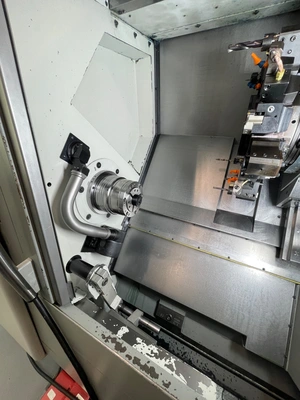

Headstock (left/right)
Spindle nose (plain flange) : 140 h5/145h5mm
Inside diameter front bearing : 100/90 mm 3.93/3.54 in
Spindle bore diameter : 69/44 mm 2.69/1.73 in
Main drive
Rating AC main drive (100% ED) : 16 kW 21.4 HP
Torque (100% ED) : 153 Nm 114 lb.ft.
Speed range : 20 - 6000 rpm
AC drive power (100% ED) : 7.5 kW 10 HP
Torque (100% ED) : 48 Nm 35.3 lb.ft.
Speed range : 20 - 6000 rpm

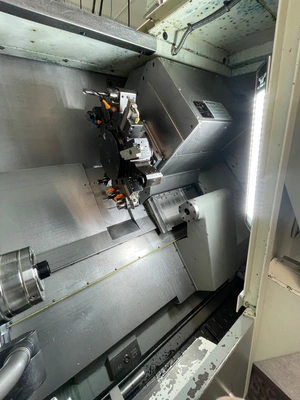

Tool turret
Number of tool stations 12
Tool reception according to DIN 69880 (VDI 3425)
cylinder shaft diameter 30 mm 1.181 in
Indexing time 30° 0, 2 sec.
Number of driven tools 12
Drive power (40% ED) 9 KW 12 HP
Torque (40%) 20 Nm 14.8 ft lb
Max speed. 4500 min-1
C-axes, main spindle / backspindle
Speed range 0 - 200 min-1
Accuracy at point stopping < 0, 04 degrees

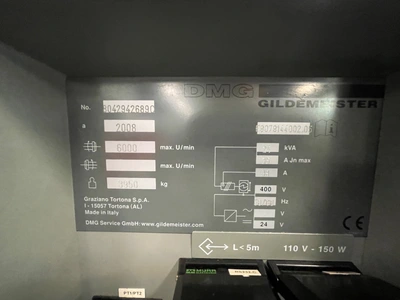

Electrical connection
Installed power, max ca. 24 kVA
Voltage 400 V
Frequency 50 Hz
Net weight of the machine with chip conveyor approx. 4500 kg 9920 lbs.
Dimensions Machine with chip conveyor LxBxH ca. 4000 x 1563 x 1730 mm
ca. 157 x 61.5 x 68.11 inch
