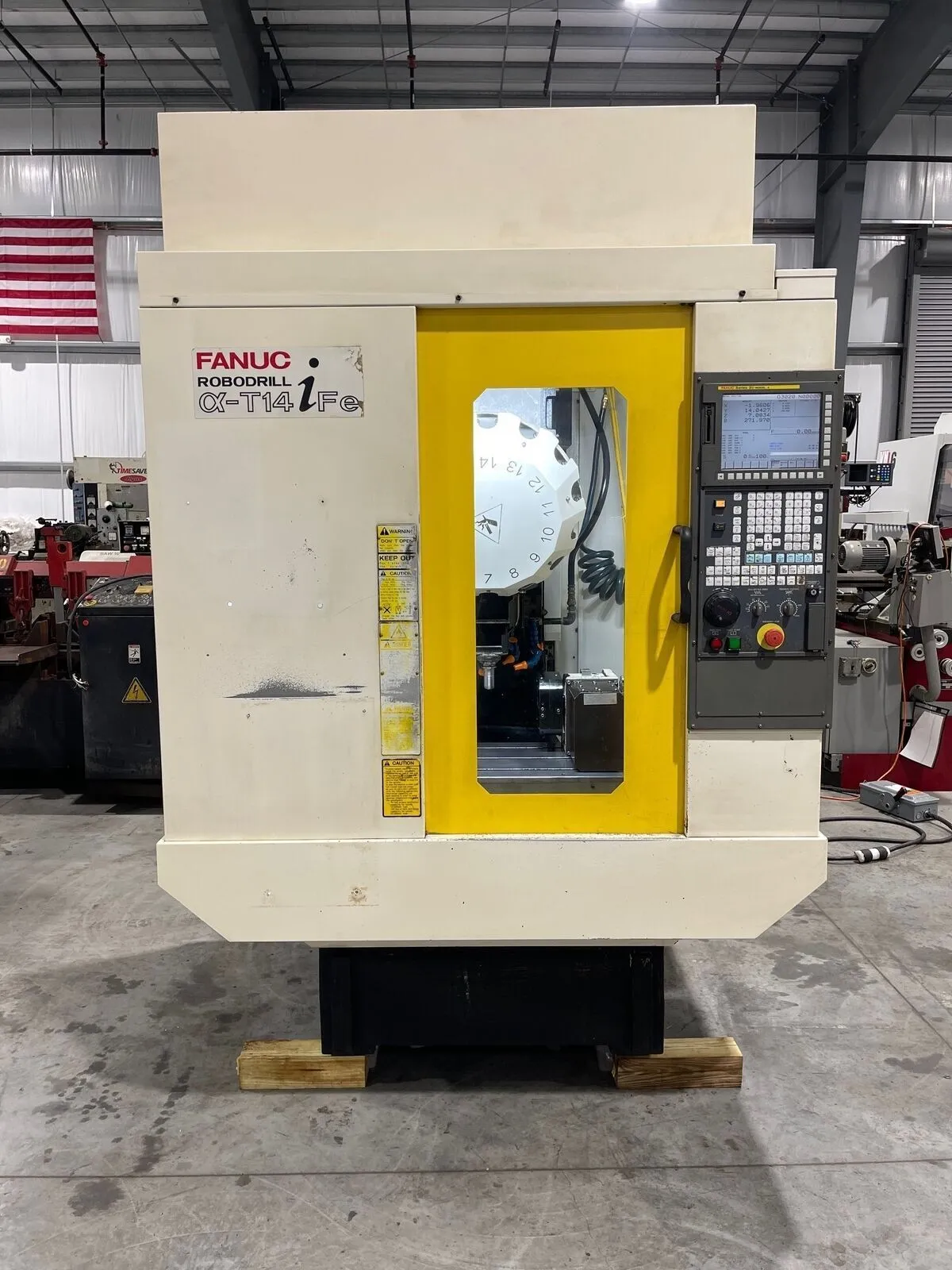

2008 FANUC ROBODRILL A-T14iFe, used drilling and tapping center. Specs: X 19.69", Y 19", Z 15", 10,000 RPM, BT-30 taper, 4 ATC. Equipped with FANUC 31i A rotary table, Tsudakoma RWA-160R, coolant tank, leveling pads. 230V/3PH/60Hz, 7.5 HP spindle.
| X | 19.69" | 500.13 mm |
| Y | 19" | 482.6 mm |
| Z | 15" | 381 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 4 | 4 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 81” x 61” x 93” | 81” x 61” x 93” |
| Weight | 5000 lbs | 5000 lbs |
FANUC 31i
Tsudakoma RWA-160R
Coolant tank and pumps
Leveling pads
7.5 H.P. spindle motor
The machine is wired for 230 volts / 3 phases / 60 H.Z.
