XD 5 Axis Head, X-Axis Travel 77", Y-Axis Travel 192", Z-Axis Travel 12", Table Dimensions 192"L x 77"W, Max. Pressure 87,000 PSI Operating Speed Axis Travel 1,400 IPM Max., 100HP
| size | 87000 PSI, 100 HP | 87000 PSI, 100 HP |
| Pump Output | 87,000 PSI | 5,998.4 bar |
| X | 77" | 1,955.8 mm |
| Y | 192" | 4,876.8 mm |
| Z | 12" | 304.8 mm |
| Table Size-W | 77" | 1,955.8 mm |
| Table Size-L | 192" | 4,876.8 mm |
| Power | 100 hp | 74.6 kW |

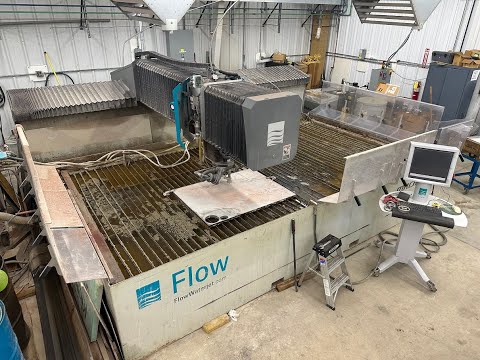

FLOW MACH 4 4020B XD 5 Axis Waterjet (2010)
Waterjet Cutter, 5-Axis Design XD 5 Axis Head,
X-Axis Travel 77", Y-Axis Travel 192", Z-Axis Travel 12"
Table Dimensions 192"L x 77"W, Max. Pressure 87,000 PSI
Operating Speed Axis Travel 1,400 IPM Max.
3D Cutting Head, HyperJet 100 Intensifier
Pump System Rated Capacity 87,000PSI/6,000 Bar
Drive Motor Rated Capacity 100 HP
Flowmaster PLC Logic Programmable CNC Control
Vacuum Sand System
Axiom Storage Vessel, Rated 125 PSI at 250 Degree F
Mfg. 2010
Ebbco Abrasive Removal Filtration System
Model CLS-141-24KHE
Myron 750II Programmable Control, DRO
480V/3Ph/60Hz, AC
Hour Meter Reading 4,175 Hrs.
Light Curtain Safety Control System
