USED BRADBURY D3-30-12

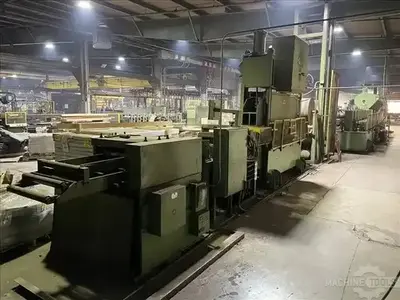

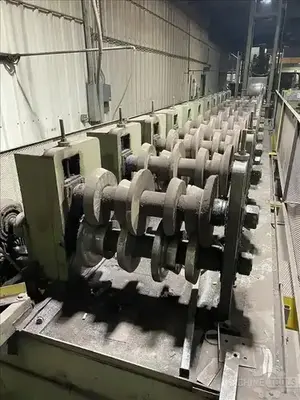

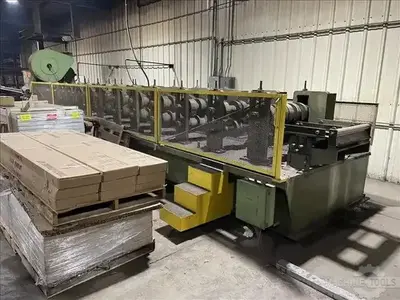

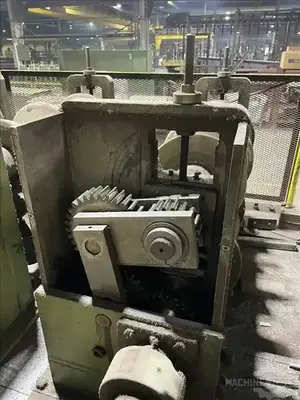

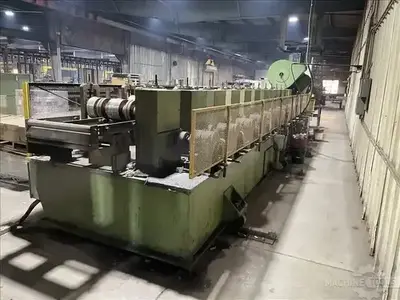

Bradbury D3-30-12 "ZEE Purlin" Tooled, Gear Driven Roll Forming Line

Bradbury D3-30-12 Roll Forming Line Specifications
Number of Stands: 12
Roll Space: 30"
Arbor Diameter: 4"
Arbor Center to Center Distance: 28"
Upper Arbor Adjustment: 6.5"
Vertical Adjustment: 7" - 13.5"
Line Speed: 80 FPM
Overall Line Length: 110'
Line Direction: L-R
All Lower Arbors Power Driven
Upper Arbor Stands 1, 2, 11, 12 Power Driven
60 HP Main Drive Motor
9" H x 2.75" Flange "Zee Purlin" Tooling: 12 Ga. - 16 Ga. Thickness
6.5" H x 2.5" Flange "Zee Purlin" Tooling: 12 Ga. - 16 Ga. Thickness

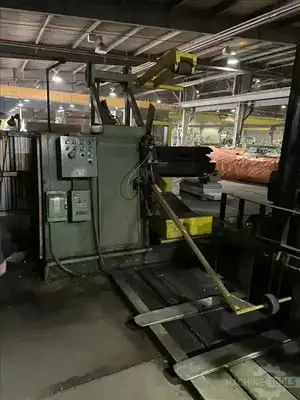

Bradbury 420-36 Powered Uncoiler w/ Coil Car
Coil Capacity: 10,000 lbs
Coil Width: 36"
Coil I.D. Range: 17.5" - 25"
Coil O.D.: 60"
Pneumatic Hold Down
Loop Control
15 HP Main Drive w/ Electric Brake
Sliding Base
Hydraulic Expansion
Hydraulic Lift & Travel

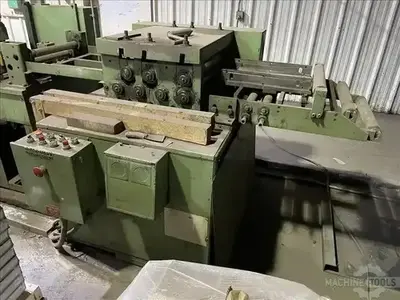

Bradbury RS4-25-5 Powered Straightener
Number of Rolls: 5
Straightening Rolls Diameter: 4"
Max. Width: 25"
Main Motor: 7.5 HP
2-Speed Reducer
Powered Driven Pinch Rolls

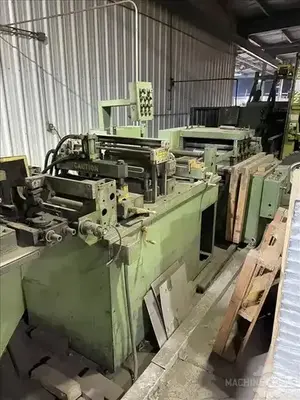

Lee Schafer H40F Shear End Welder
Thickness Capacity: 0.028" - 0.134"
Hydraulic Squaring Shear & Welding Clamps
Auto Tig Weld Cycle
Adjustable Side Guides

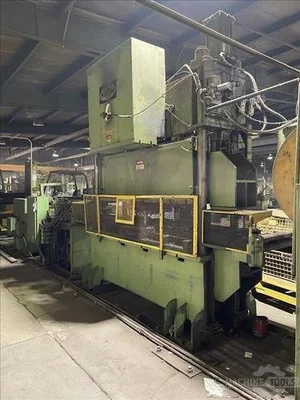

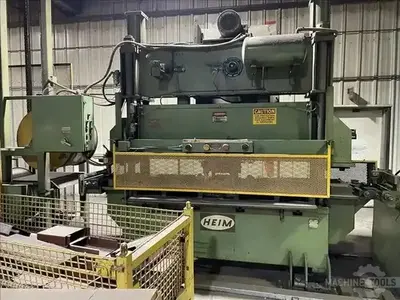

Heim S100-30-80 Straight Side Notch & Pre-Punch Press
Capacity: 100 Tons
Bed Area 80" x 30"
10 hp Main Motor
Punch Die w/ Manual Gauges (to change pattern)
Air Clutch

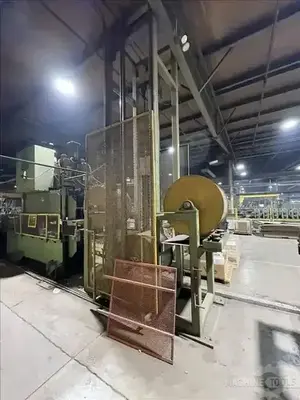

3-Drum Air Actuated Accumulator
Allows Rollformer to run continuous during punching sequence

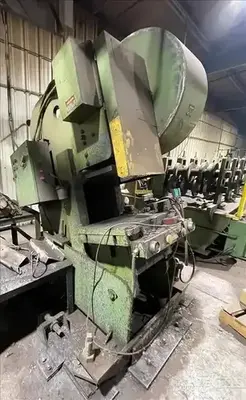

Heim 7A OBI Cut-Off Punch Press
Capacity: 70 Tons
Tooled w/ Flying Cutoff Die
Air Cylinder Die Return
(4) Total Dies
30' Runout Conveyor
Dump section, with pins

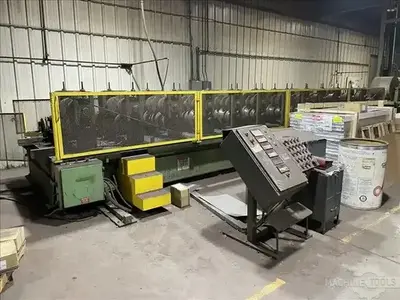

Complete Control System w/ Operator's Desk
