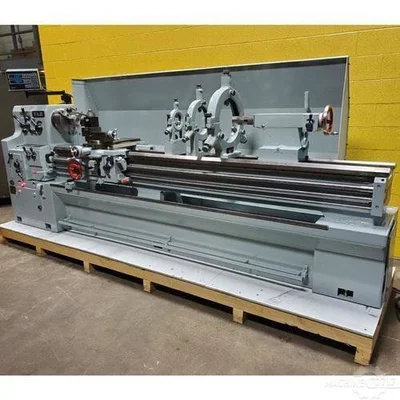

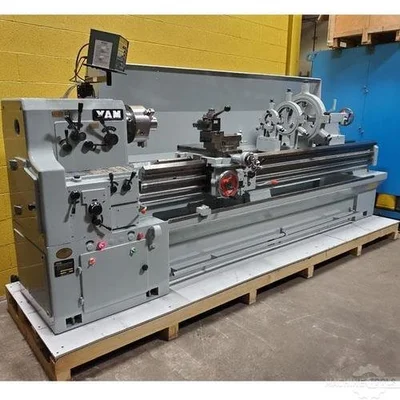

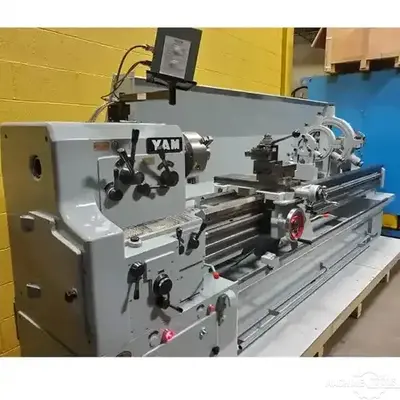

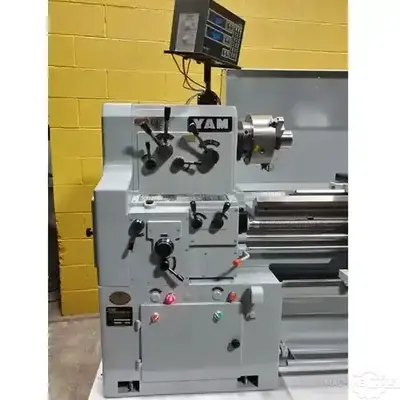

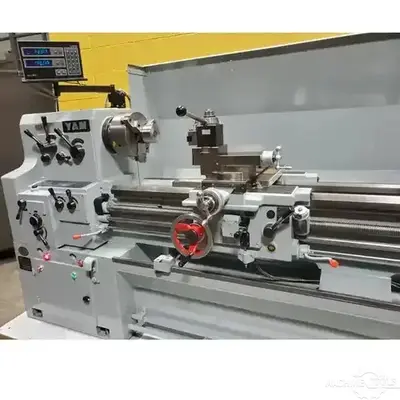

YAM (Yang) 2500HG 22" x 100" Engine Lathe
| Swing | 22" | 558.8 mm |
| Centers | 90" | 2,286 mm |
| Spindle Bore | 2" | 50.8 mm |
| RPM | 1,500 RPM | 1,500 RPM |
Swing Over Bed: 22"
Swing Over Cross Slide: 10.5"
Bar Capacity: 2.3"
Swing Over Gap Removed: 29.5"
Distance Between Centers: 100"
Chuck: 10" 3-Jaw
Spindle Nose: ASA D-1-6
Spindle Center: MT #4
Spindle Taper: MT #6
Spindle Speeds: (12) 25 - 1500 RPM
Cross Slide Travel: 10.5"
Compound Rest Travel: 6.3"
Tailstock Spindle Diameter: 2-9/16"
Motor: 10 HP
XY Acu-Rite Read Out Control
Tool Post & Tool Gap
Cooling Pump Motor

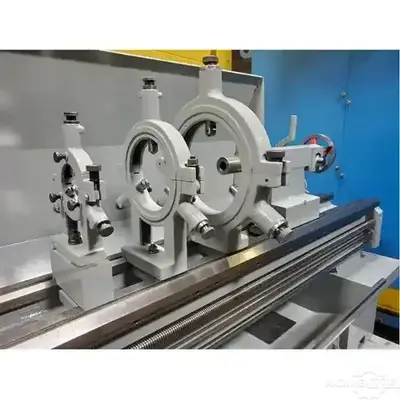

Steady Rest

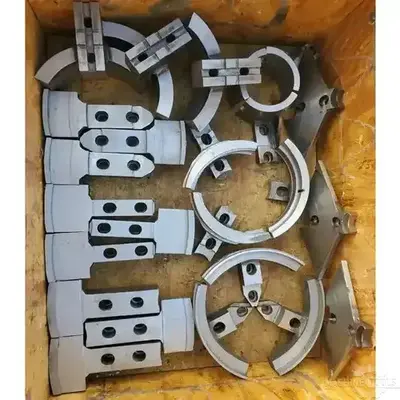

8 Pair of Soft Jaws
