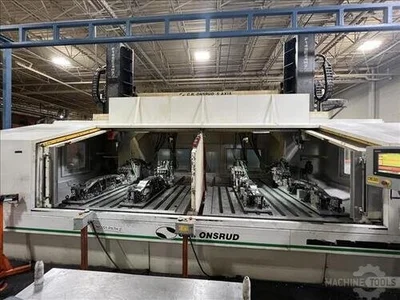

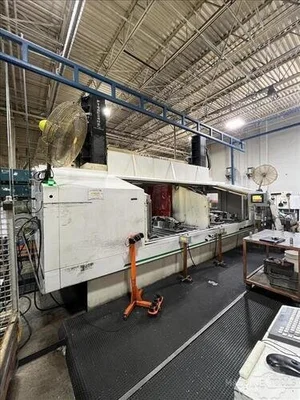

C.R. Onsrud F148E24H2 5-Axis CNC Router
| Table-W | 5' | 1,524 mm |
| Table-L | 6' | 1,828.8 mm |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | HSK-63F | HSK-63F |
Machining Envelope: 12' x 5'
(2) Tables: 6' x 5'
Z-Axis Travel: 41"
Machining Speed: 3600 IPM
(2) Spindles: 24,000 RPM
Spidle Taper: HSK-63F
A-Axis Rotation: +/- 120°
C-Axis Rotation: +300/-115°
(2) Tool Changers: 12-ATC
Head 1 Run Time: 12,104 Hours
Head 2 Run Time: 10,525 Hours
Fanuc 31i-B5 CNC Control
Two Chillers for Spindles
Two Automatic Oil Fog Mist Lubricators
Full 3-D Capability
Twin Moving Table Design
Safety Enclosure
