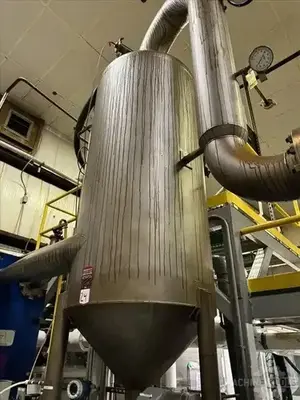

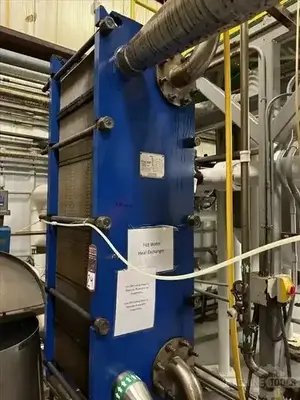

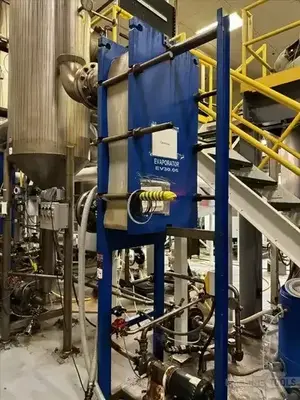

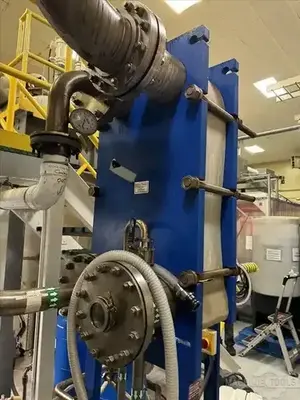

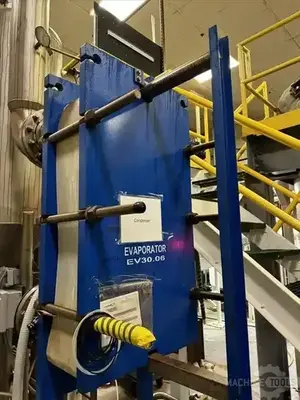

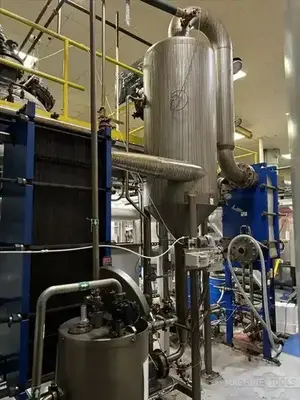

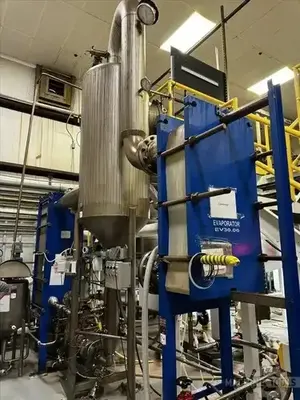

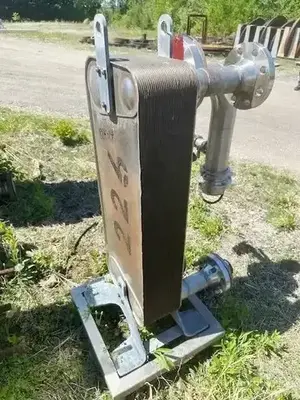

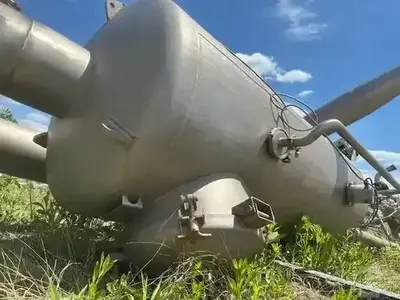

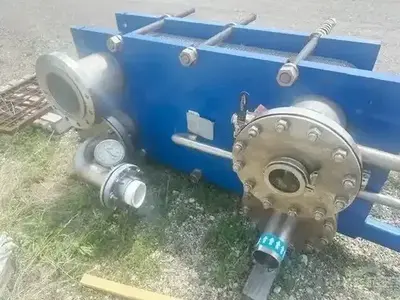

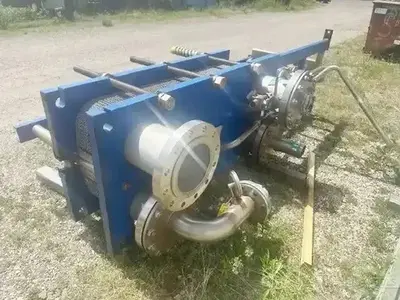

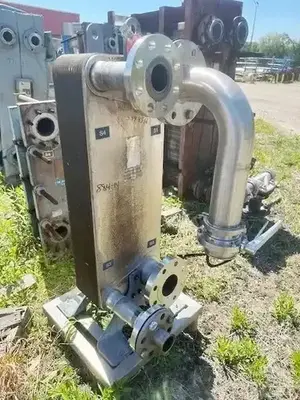

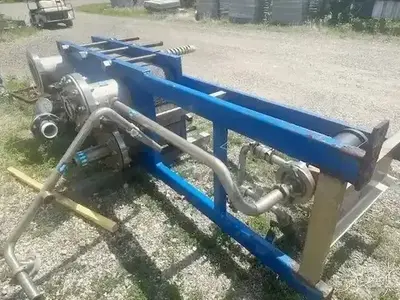

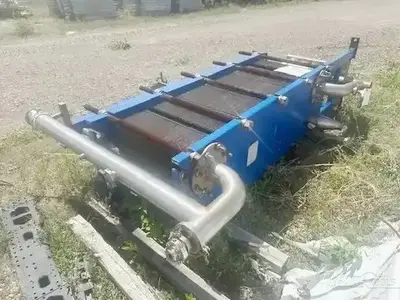

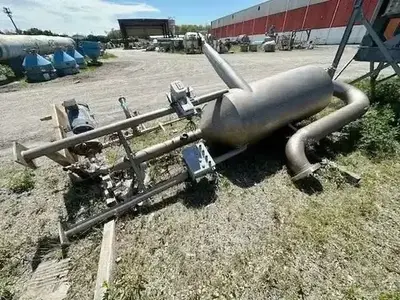

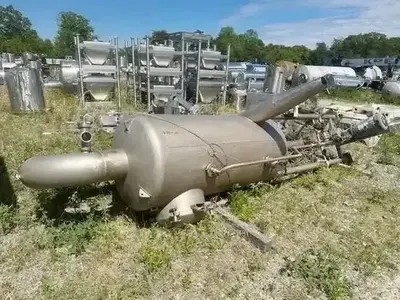

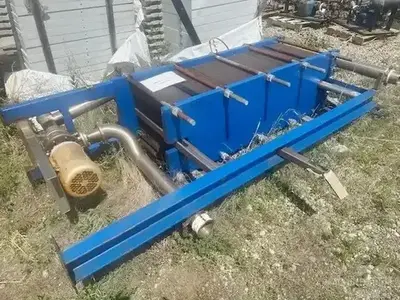

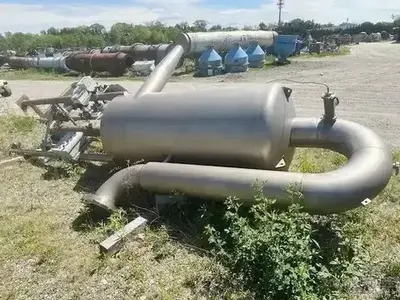

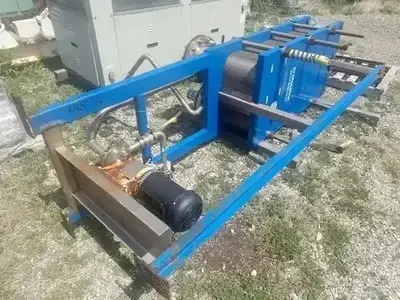

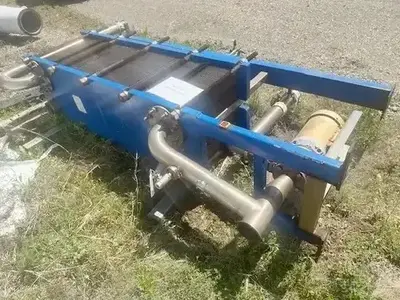

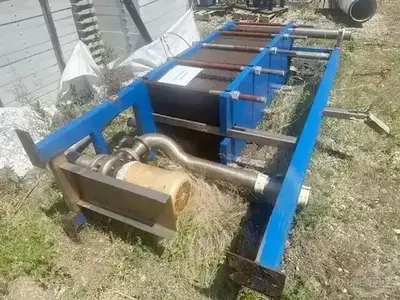

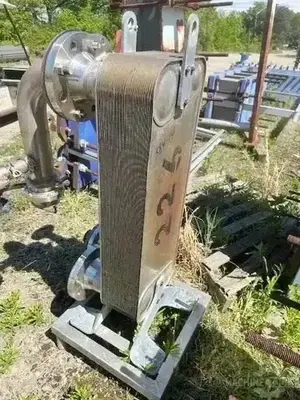

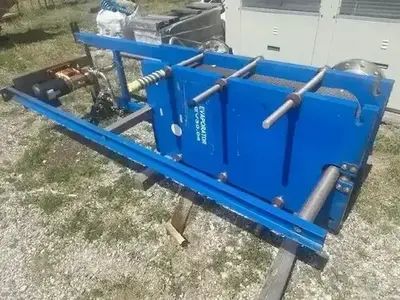

Schmidt Sigma 66 One-Effect APV Plate Evaporator System
Inlet: 2,250 lb/hr, 20° Brix @ 68° F
Evaporation: 1,675 lb/hr
Concentrate: 575 lb/hr, 78° Brix @ 140° F
Utilities:
Hot Oil: 110 GPM 215° F Inlet to 185° F Outlet
Cooling Water: 85° F Inlet to 100° F Outlet
To Condensor: 190 GPM
Potable Water: 10 GPM (Rinse)
Electric: 10.5 HP
