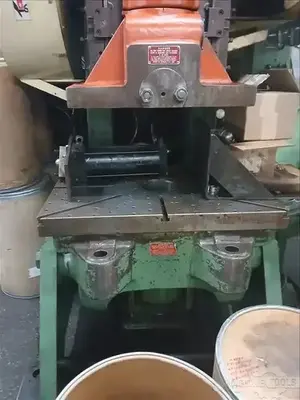

Walsh 90AC Back Geared OBI Press
| Tonnage | 90 T | 81.647 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 13" | 330.2 mm |
| Bed W | 27" | 685.8 mm |
| Bed L | 38" | 965.2 mm |
Capacity: 90 Ton
Stroke: 6"
Shut Height: 13"
Bolster Area: 42" x 27" x 3.5"
Press Bed: 38" x 27"
Slide: 25.8" x 15.5"
Throat Depth: 14"
Shank Hole Dia.: 3"
Adjustment: 3"
Open Between Uprights: 23"
Phase: 3
Cycle: 60
Volt: 230/460
Motor: 10 hp
Motor Speed: 900 RPM
Flywheel
Dayton Rogers MC14 Air Cushion
Air Clutch & Brake
Air Counterbalance
Back Gear
Tie Rods
Operator T-Stand
Vari Drive Motor
