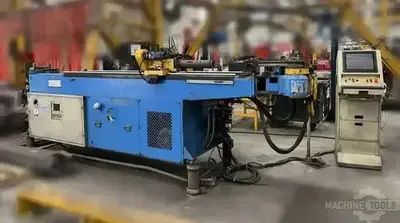

HMT 50TSR 3-Axis CNC Tube Bender
| Capacity | 2" | 50.8 mm |
Max. Pipe O.D. (S = 56,893.4 PSI): 2" x 0.12"
Max. Pipe O.D. (For Repeat Feeding): 2"
Round Tube - Non-Ferrous (S = 35,558.4 PSI): 2" x 0.2"
Round Tube - Stainless (S = 85,340.1 PSI): 2" x 0.07"
Square Tube - Mild Steel (S = 56,893.4 PSI): 1.57" x 0.12"
Round Bar - Mild Steel (S = 56,893.4 PSI): 0.98"
Max. Bending Radius: 1.18" - 8.66"
Max. Bending Radius - Square Tube: 1.18" - 7.48"
Max. Bending Angle: 190°
Max. Length Over Mandrel: 86.61"
Working Height: 43.3"
Tooling Center Line Height: 1.57"
D.O.B. Speed: 80° per second
Accuracy of D.O.B.: +/- 0.1°
D.B.B. Speed: 51.18 IPS
Accuracy of D.B.B.: +/- 0.004"
P.O.B. Speed: 270° per second
Accuracy of P.O.B.: +/- 0.1°
Motor For Hydraulic: 10.2 hp
Total Power: 12.9 hp
Max. Pressure: 1991.27 PSI
Default Pressure: 1422.33 PSI
Hydraulic Tank Capacity: 47.55 Gallons
