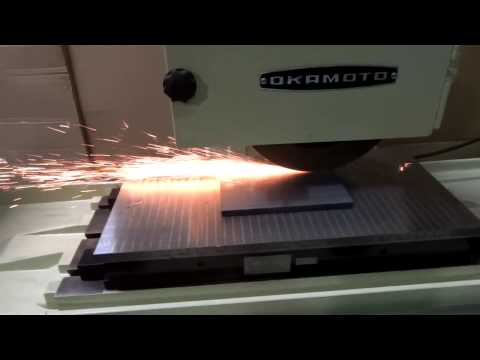

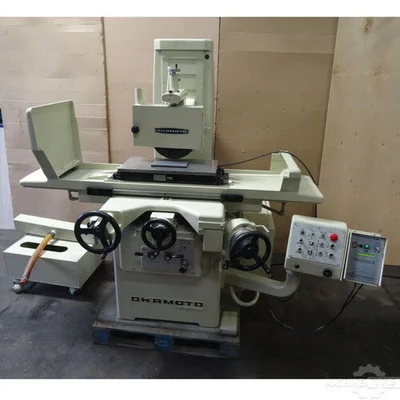

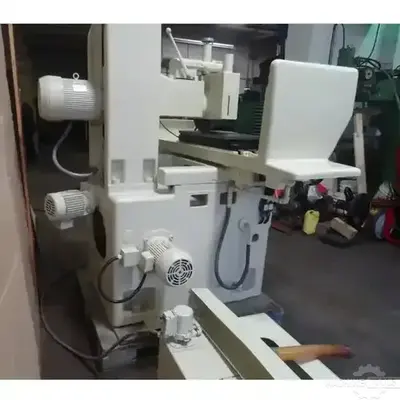

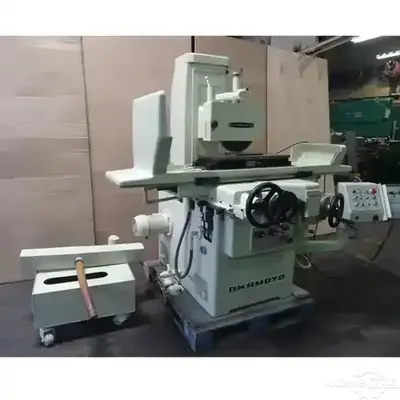

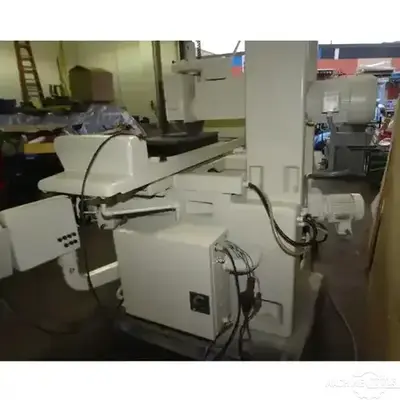

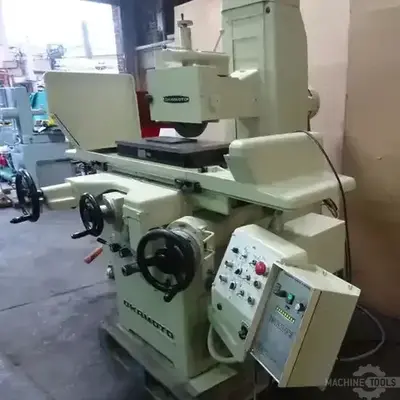

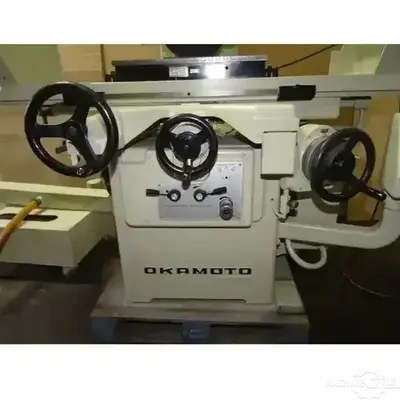

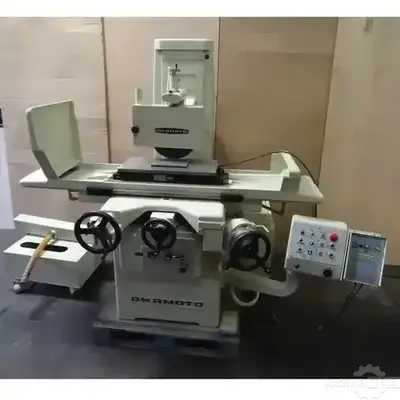

Okamoto Accugar-124N Hydraulic Surface Grinder
| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 12" | 304.8 mm |
| Grinding Wheel Dia. | 24" | 609.6 mm |
Table Surface: 12" x 24"
Maximum Workpiece Height: 13.7"
Table Longitudinal Travel: 29.5"
Table Cross Travel: 13.6"
Foot Pad: 30" x 42"
TABLE LONGITUDINAL FEED
- Hydraulic: 1 FPM - 100 FPM
- Hand: 1.85"
TABLE CROSS MOVEMENT
- Hydraulic Increment: 0.2" - 0.8"
- Hydraulic Continuous: 4 IPM - 40 IPM
- Hand: 0.25"
- Graduation of Handwheel: 0.001"
Vertical Rapid Feed Rate: 19 IPM
Grinding Wheel Size (OD x W x ID): 12" x 1.5" x 5"
Spindle Speed: 1800 RPM
Kanet Electromagnetic Chuck
Auto Incremental Down Feed
Hydraulic Longitudinal and Cross Feed
Power Rapid Wheelhead Elevation
Cross Feed Control
Table Speed Control
Step Feed Control
Automatic Sparkout up to 5 Passes
5 HP AC Main Drive Spindle Motor
- 3/60/230-460 VAC, 12/6 Amps
2 HP AC Hydraulic Power Unit Motor
Cooling Pump Unit
- 230/460 VAC, 0.4 / 0.25 Amps

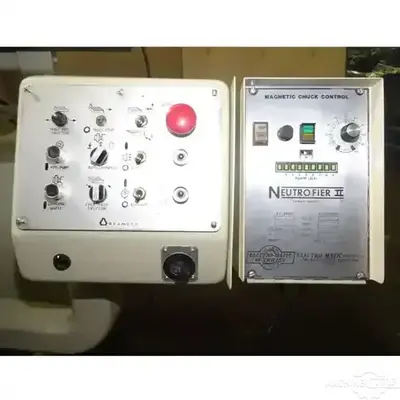

Electrical Controls
