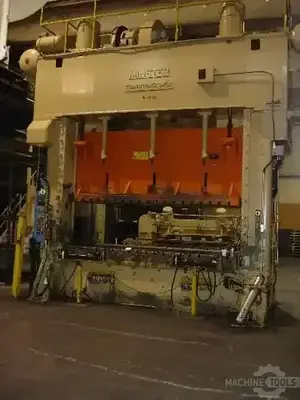

Minster S2-300-120-54 Straight Side Double Crank Press
| Tonnage | 300 T | 272.156 t |
| Stroke | 14" | 355.6 mm |
| Shut Height | 29" | 736.6 mm |
| SPM | 14 | 14 |
| Bed W | 54" | 1,371.6 mm |
| Bed L | 120" | 3,048 mm |
| Air Clutch (Yes/No) | YES | YES |
Capacity: 300 Ton
Stroke: 14"
Shut Height Over Bed (SDAU): 29"
Powered Slide Adjustment: 14"
Bed Area: 120" L-R x 54" F-B
Slide Area: 120" L-R x 54" F-B
Window Opening: 22" W
Distance Bed to Floor: 32"
Speed (Variable): 14 - 28 SPM
(4) Air Counterbalances to Slide

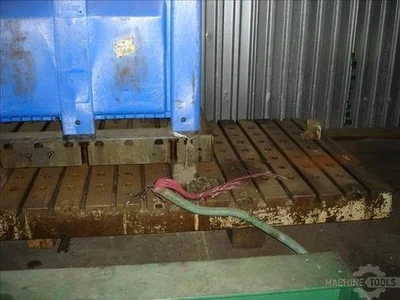

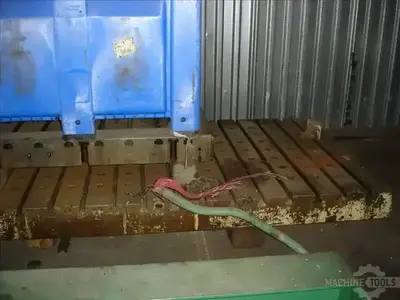

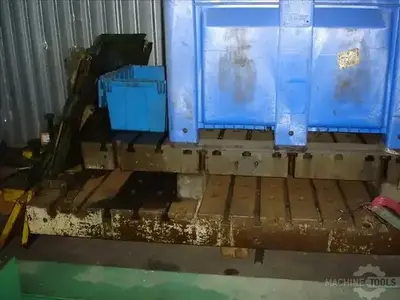

T-Slotted Bolster Plate
(3) Die Cushions (22J, 7" stroke)
Automatic Recirculating Lubrication System
Minster Air Clutch and Brake with Selector Controls
AC Main Vari-Speed Drive Motor
Tie Rod Construction
Arranged for (3) F-B Knockouts
Enclosed Gears Running in Oil
AC Adjustment Motor
Electrical Controls
Dual Palm Button Operation (Pedestal Mounted)
