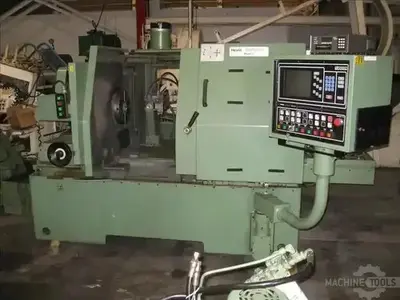

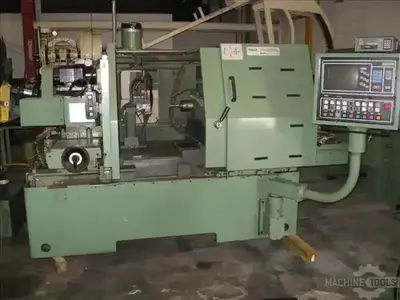

Cincinnati Milacron 2EF-750G CNC Internal Grinder
| Swing | 28" | 711.2 mm |
| Stroke | 17" | 431.8 mm |
| Travel-Long | 20" | 508 mm |
| Workhead Swivel | 90 Degrees | 90 Degrees |
| Workhead Power | 10 hp | 7.5 kW |
| Wheel Power | 10 hp | 7.5 kW |
| Workhead Speed | 30 RPM | 30 RPM |
Work Head Capacity: 1,000 Lbs
Swing over Table - Maximum: 28"
Swing with Work Head @ 90°: 17"
Grinding Stroke - Maximum: 17"
Table Longitudinal Travel: 20"
Wheel Head Cross Slide Travel: 9"
Work Slide Travel: 16"
Work Head Swivel Angle - Maximum: 0 - 90°
Work Head Spindle Speeds - Reversible: 30 - 999 RPM
Feed Rate - Infinite Range: .001 IPM - 999 IPM

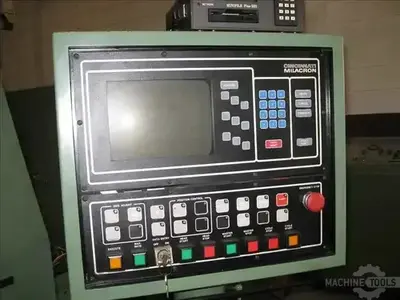

Acramatic #750G CNC Control
10 HP Work Head Spindle Motor
4.5 HP Work Head Chuck Motor

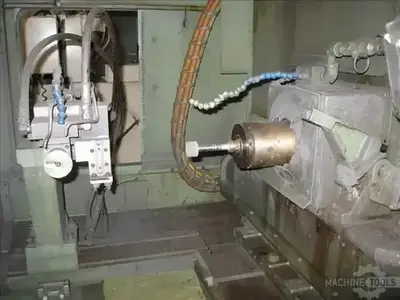

Cross Sliding Work Head
0-45° Sine Bar
2" Riser on Work Head
Hydraulic Rotary Diamond Dresser
12" Extended Base

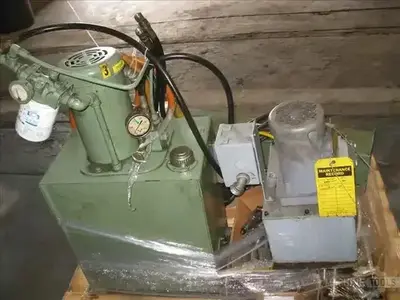

Coolant Tank & Pump

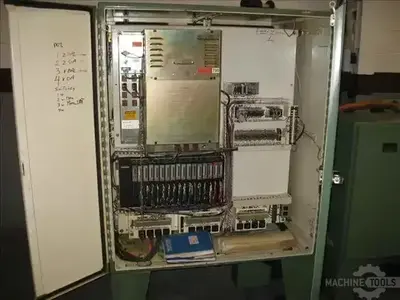

Stand Alone Electrical Panel
Flange Style Work Head
Full Guarding
