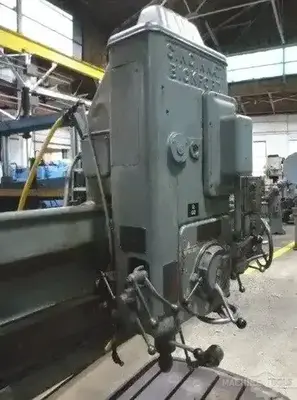

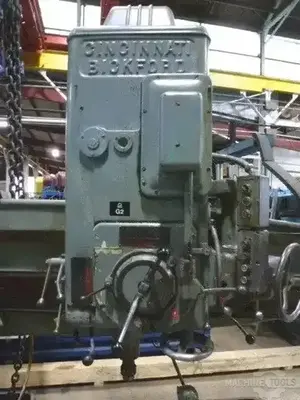

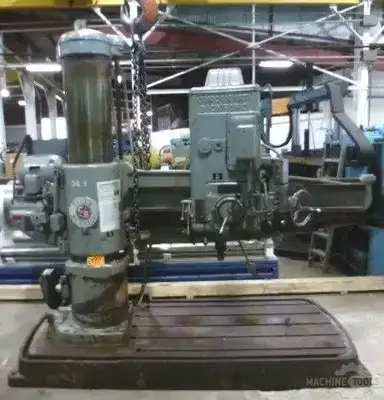

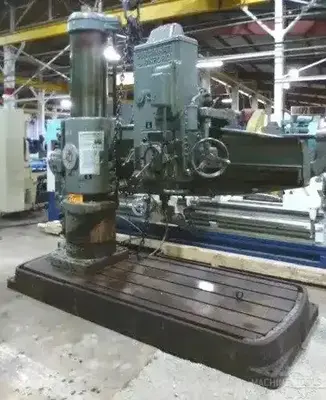

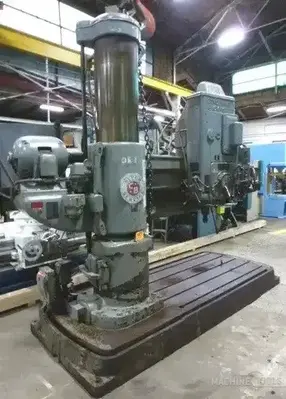

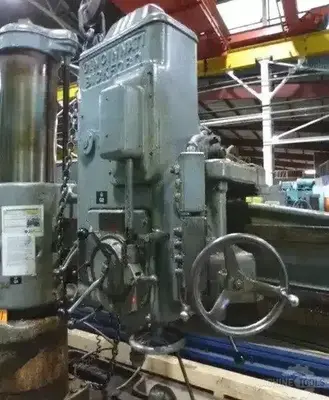

Cincinnati Bickford 6' X 17" Radial ARM Drill
| Arm Length | 8' | 2.4 m |
| Column Dia. | 9" | 228.6 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 2,500 RPM | 2,500 RPM |
Arm Length: 6'

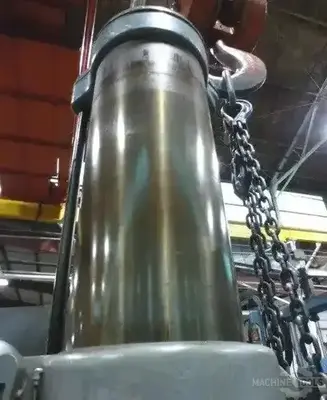

Column Diameter: 17"
Spindle Speeds: 14-1700 RPM (36 Steps)
Spindle Feeds: .004 - .125 IPR
Tap Leads: 8 - 27 TPI
Spindle Stroke: 18"
Spindle Diameter: 4-3/16"
Spindle Motor: 20 HP
Spindle Taper: No. 6 M.T.
Spindle Radius (Min. / Max.): 23-3/8" / 83-5/8"
Spindle to Base (Min. / Max.): 15" / 72"
Power Column Clamping
Power Head Traverse
Power Head Clamping
