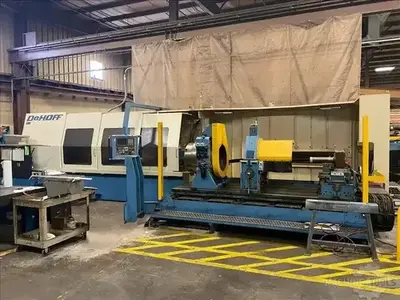

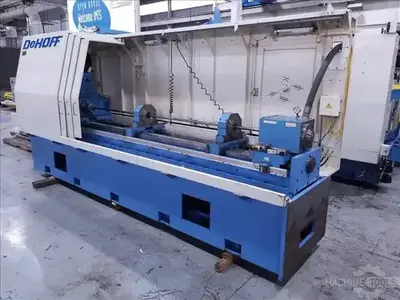

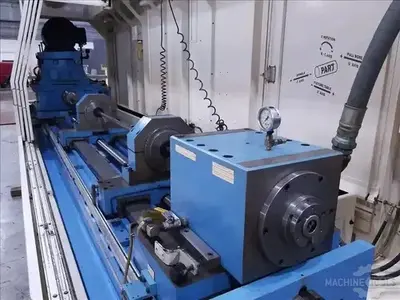

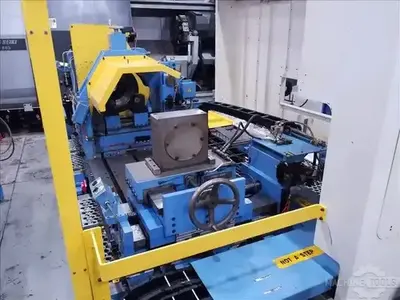

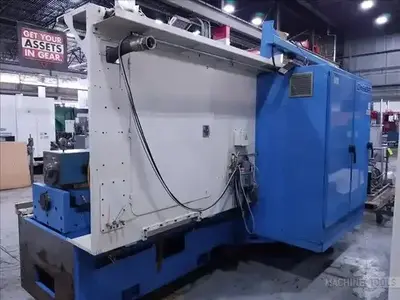

Dehoff 31020RT-BTA Rotating Tailstock Precision Deep Hole CNC Drilling Machine
| Drilling Diameter | 3" | 76.2 mm |
| Drilling Depth | 120" | 3,048 mm |
Drill Capacity: 3" (Steel)
Max. Part Length: 120"
Number of Drill Heads: 1
Number of Spindles: 1
Drill Head Stroke: 120"
Feed Rate: 0.1 IPM - 30 IPM
Rapid Retraction of Drill Head: 150 IPM
Max. Spindle Speed: 0 - 2000 RPM
Min. - Max. Part Diameter: 5" - 16"
Max. Part Weight: 6750 Lb.
Spindle Centerline Parallel to Slide Ways: 0.0005 in / ft

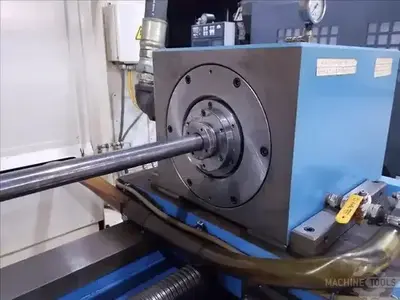

Face of Pressure Head Perpendicular to Spindle: 0.0005"
Spindle Runout: 0.0002"
C Rotation B/C Axis
U Axis Pull Bore
X Axis Fixture Table
Z Axis Spindle
Pneumatic Lift Assist: Counter Rotation Assembly

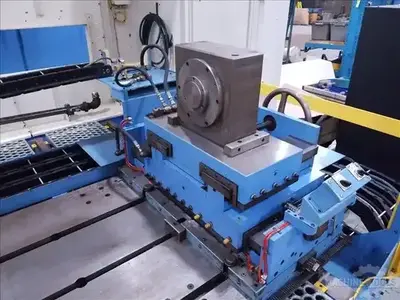

Part Steady Rest & U-Axis Fixture Table

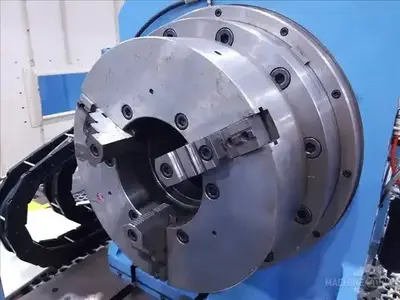

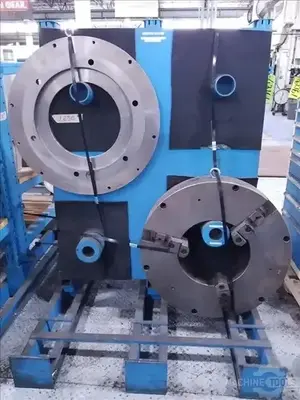

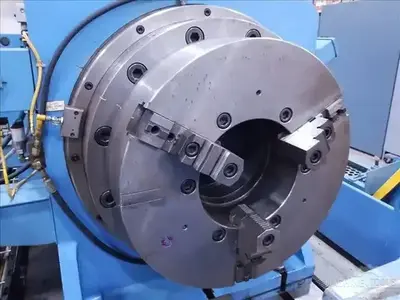

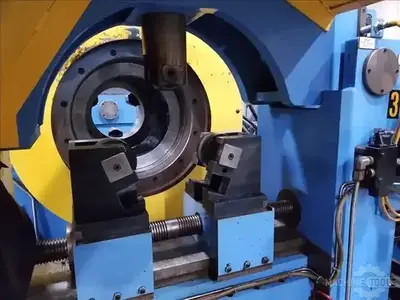

35.5" 3-Jaw Chuck w/ 17" Hole & Adapter Plate
25" 3-Jaw Chuck w/ 11" Hole; Adapter Plate & Sleeve Insert

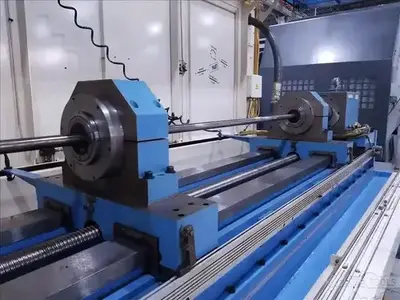

(2) Vibration Dampen Carriage Tube Mill Guides

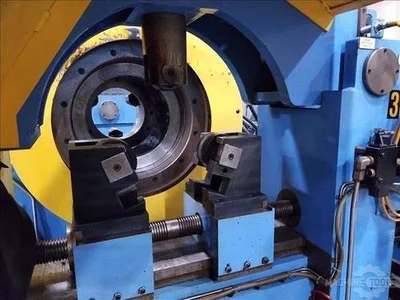

Work Holding Steady Rest w/ Air Assist

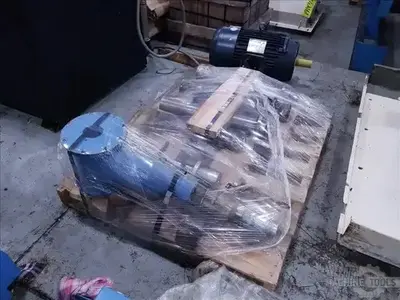

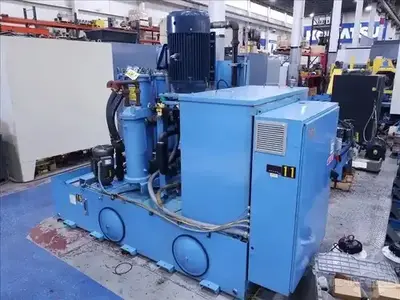

1500 PSI Fixed Displacement High Pressure Gear Pump
w/ AC Variable Frequency Drive; 117 GPM Max
500 Gal. Coolant System Tank Capacity

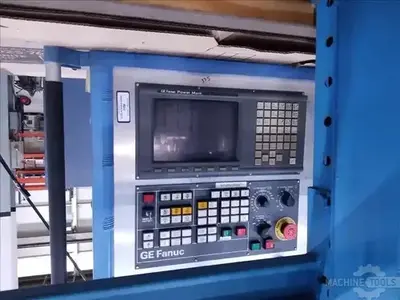

GE Fanuc Power Mate CNC Control

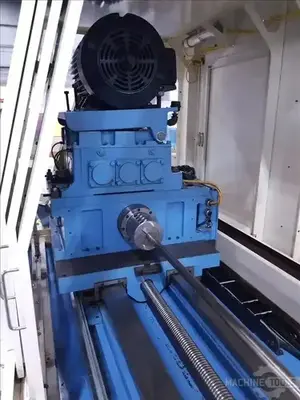

40 HP Spindle Motor

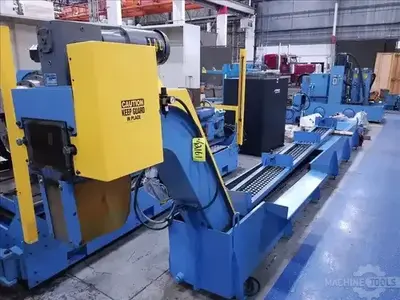

Chip Conveyor

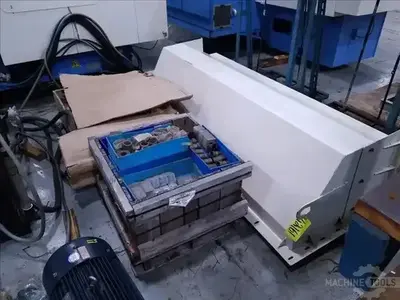

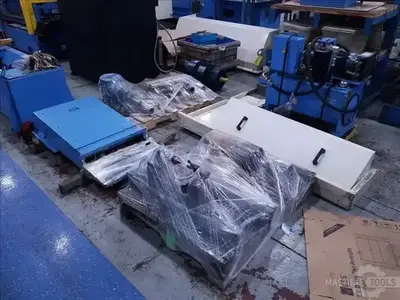

Large Quantity of Various Size Drill Heads, Counterboring Heads
Carbide Inserts, Drill Tubes, Adapters, Connectors,
Driver Mounts, Split Clamps & Seal Rings, Bearings, Misc. Spares
