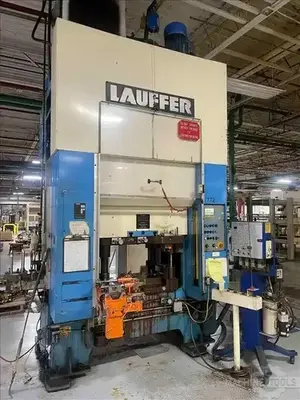

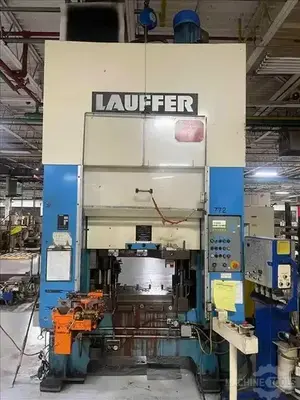

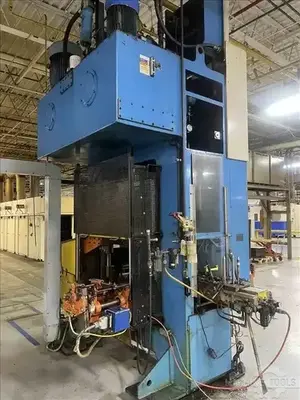

Lauffer RPS160 176 Ton Hydraulic Straight Side Press
| Tonnage | 176 T | 159.665 t |
| Stroke | 7" | 177.8 mm |
| Power | 40 hp | 29.8 kW |
| Bed W | 31.5" | 800.1 mm |
| Bed L | 39" | 990.6 mm |
| IPM | 106 ipm |

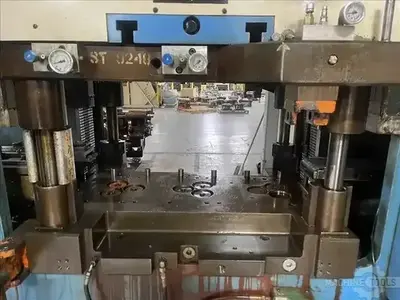

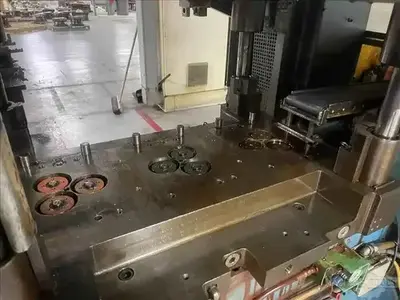

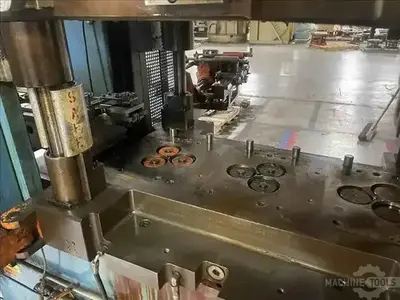

Die Setup Included
Capacity: 176 Tons
Stroke: 7.9"
Daylight: 19.7"
Table Area: 39.37" x 31.50"
Ram Area: 39.37" x 31.50"
Table Height: 33.46"
Fast Advance Speed: 16 IPS
Pressing Speed: 2 IPS
Retract Speed: 14 IPS
Ram. Hydraulic Ejector Pressure: 2.2 Tons
Max. Ejector Stroke: 2"
Max. Hydraulic Draw Cushion Pressure: 17.6 Tons
Max. Draw Cushion Stroke: 3.9"

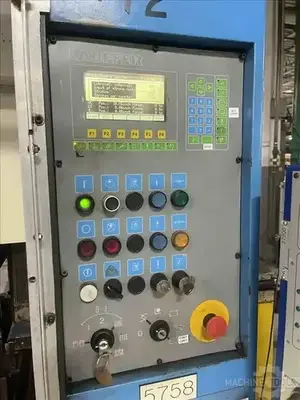

Siemens Control
