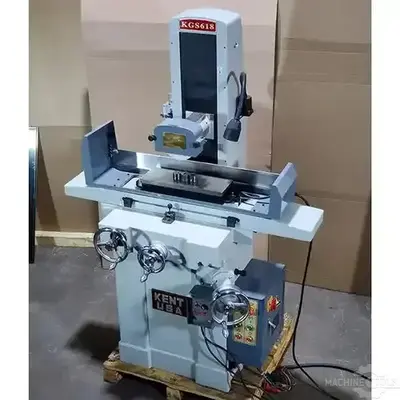

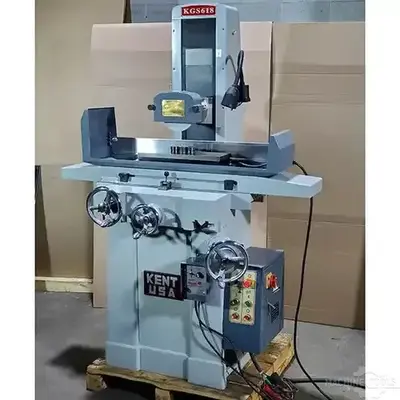

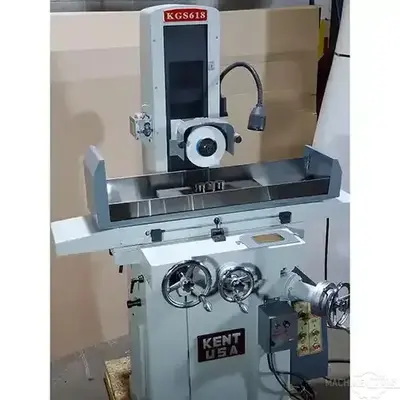

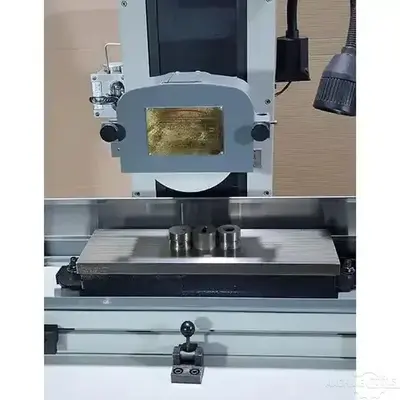

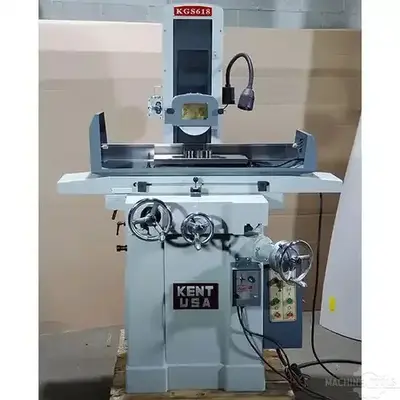

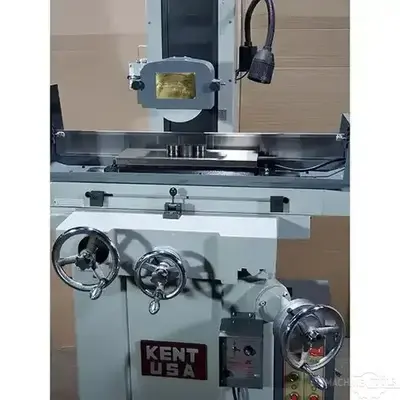

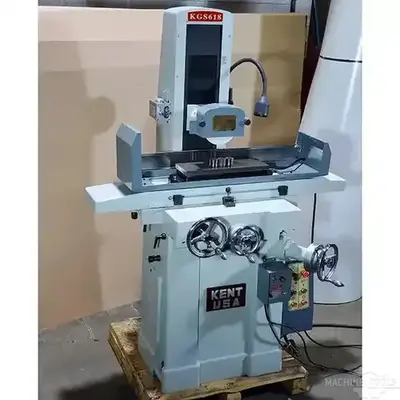

Kent KGS 618 Surface Grinder
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
Max. Grinding Surface: 6" x 18"
Max. Horizontal Travel: 19"
Max. Cross Travel: 7"
Distance Between Table Surface and Spindle Center: 17.75"
Downfeed Manual Fine: 0.0002" - 0.0004"
Wheel Size: 8" x 1" x 1.25"
Manual Varial Table Speed
Crossing Table Manual
220 / 440 VAC 3 Phase 2 HP
5.59 / 2.79 Amps
3440 RPM
Electromagnetic Table w/ Control
