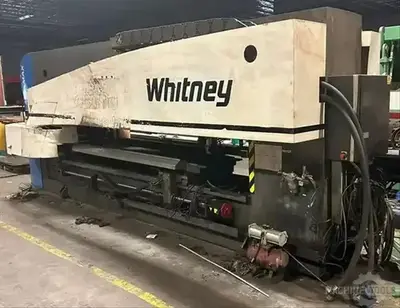

Whitney 4400 Max 100 Ton CNC Combination Turret Punch & Plasma
| Tonnage | 100 T | 90.719 t |
Punching Force: 100 Tons
Positioning Area (X x Y): 170" x 96"
Max. Positioning Speed: 1200 IPM
Positioning Accuracy: +/-0.005"
Max. Blank Size w/o Extended Tables: 96" x 120"
Max. Punching Diameter: 3"
Max. Material Thickness: 1"
Max. Workpiece Weight: 4900 lbs
Punching Hit Rate on 1" Centers (10 Ga. Steel): 125 HPM
Tooling: 16-ATC
Punch Type: 44-TC
Plasma Output Current: 260A
Digital Manual w/ Specs, Capacities, and Drawings Available on Request

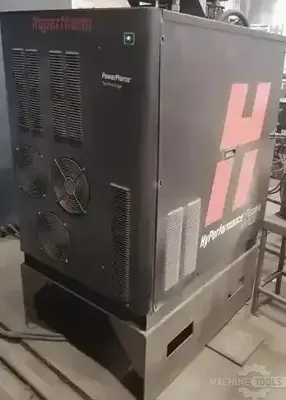

Hypertherm HPR260 260A Plasma Source

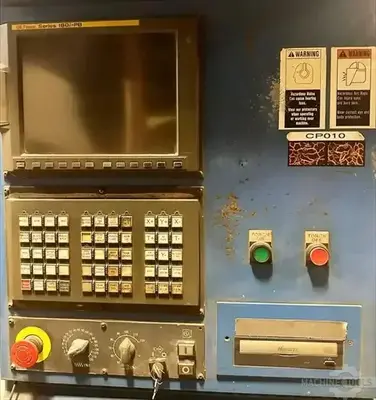

Fanuc 180i-PB CNC Control
24" x 96" Automatic Small Part Removal Drop Floor for Plasma
Dust Collector
