| # Spindles | 4 spdl | 4 spdl |
| Swing | 15" | 381 mm |
CAPACITY: 15" SWING

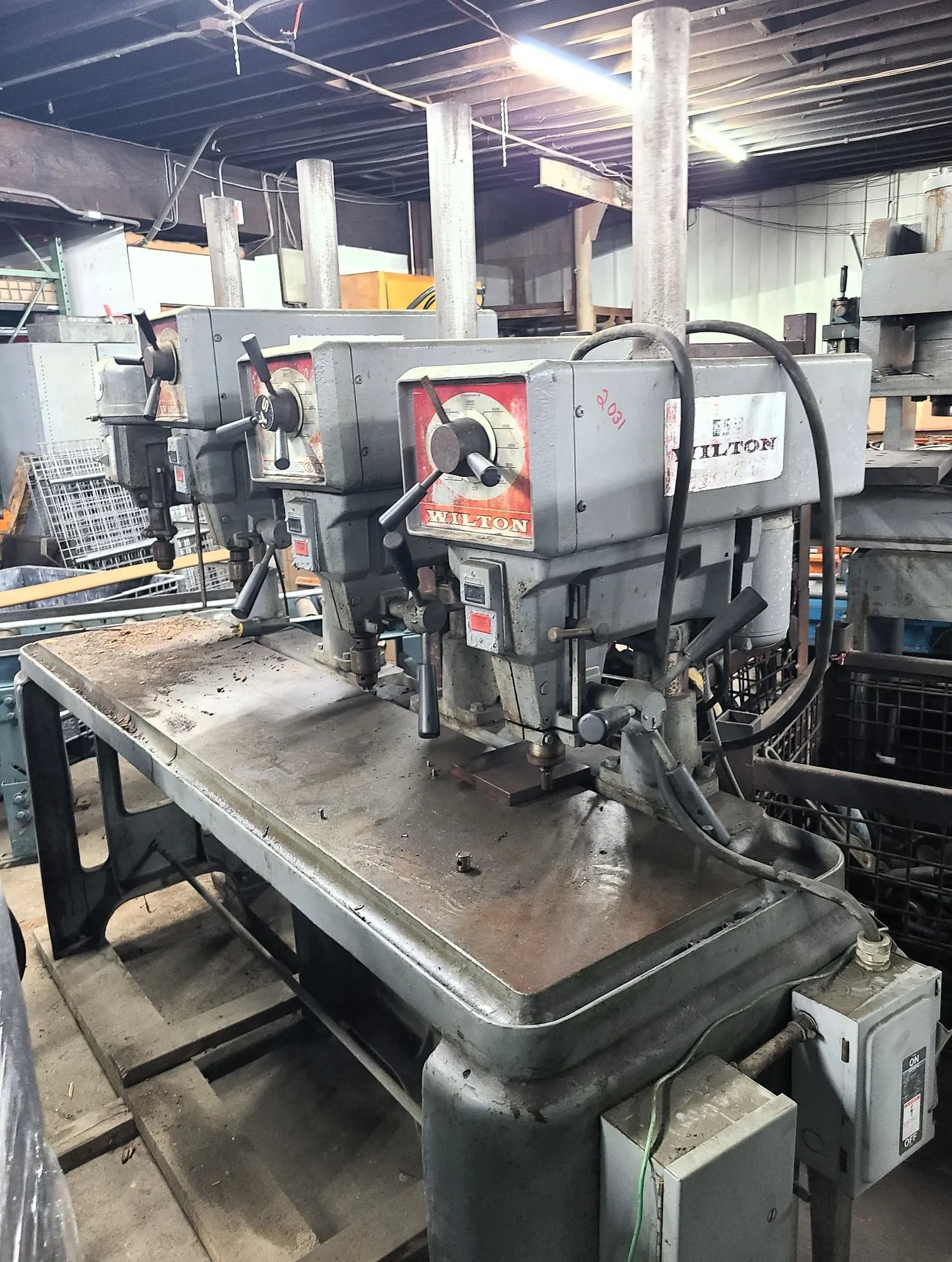

4 HEAD IN LINE DRILL PRESS
15 1/4" X 74 1/2" TABLE
HEAD #1: 1/2 HP 115/220 SINGLE PHASE MOTOR
4 SPEEDS BY BELT CHANGE
4 1/2' SPINDLE TRAVEL
28 1/2" MAXIMUM FROM THE CHUCK TO
THE TOP OF THE TABLE
HEAD #2,#3 & #4: 3/4 HP 208/220/440 VOLT 3 PHASE MOTOR, VARIABLE SPEED 300 4800 RPM DEPENDING ON THE RPM OF THE MOTOR, 6 1/2" SPINDLE TRAVEL, 25 1/2" MAXIMUM FROM THE CHUCK TO THE TOP OF THE TABLE
3 DRILL CHUCKS
