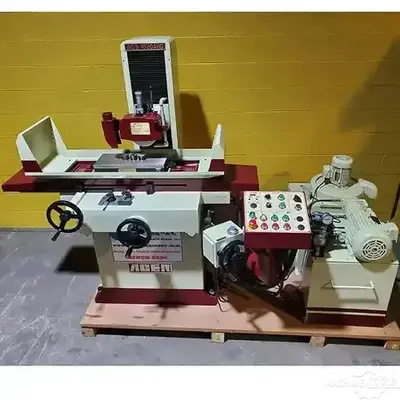

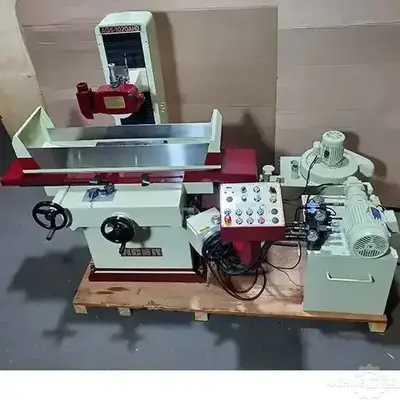

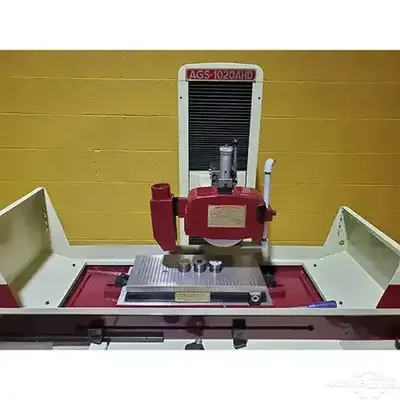

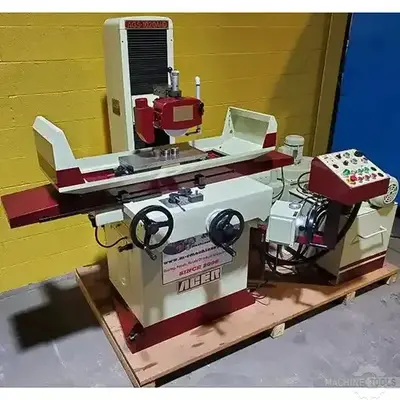

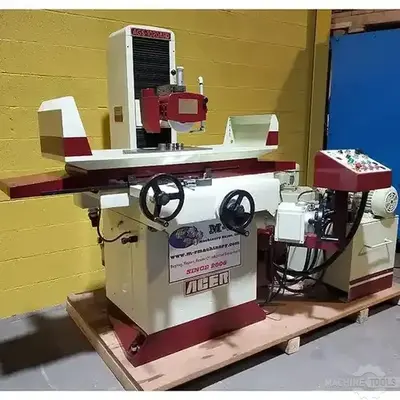

Acer AGS-1020AHD Surface Grinder
| Table-W | 9" | 228.6 mm |
| Table-L | 20" | 508 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
Max Surface Grind (W x L): 10" x 20"
Height Travel From Table Top to Center of Spindle: 19-1/2"
Variable Table Speed, Hydraulic: 16 FPM - 80 FPM
Max Table Travel: 20-1/2"
Automatic Cross Feed Increment: 0 - 1"
Max Cross Travel: 11"
Downfeed Handwheel Per Graduation: 0.0005"
Per Revolution: 0.1"
Crossfeed Handwheel Per Graduation: 0.001"
Per Revolution: 0.2"
Automatic Incremental Downfeed: 0.001" to 0.0001"
Spindle Motor: 2 hp
Standard Grinding Wheel: 8"D x 3/4" x 1-1/4"
Max Table Load Capacity Including Chuck: 700 lbs
Automatic Incremental Downfeed (Surface and Plunge)
Hydraulic Power Longitudinal Feed
Power Crossfeed
8" x 18" Manual Chuck
Combination Coolant System and Dust Collector
Over the Wheel Dresser
Auto Lube System
External Hydraulic System
