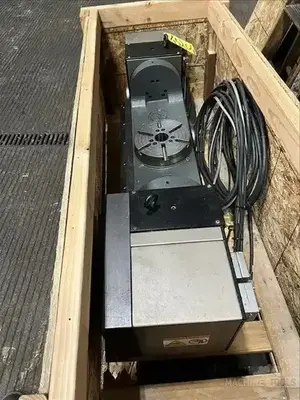

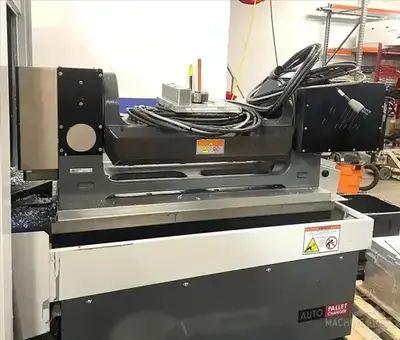

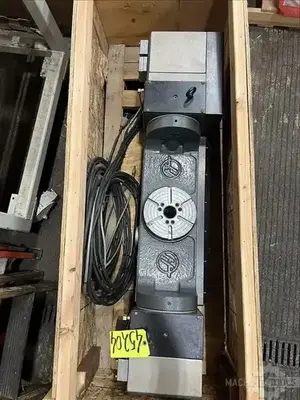

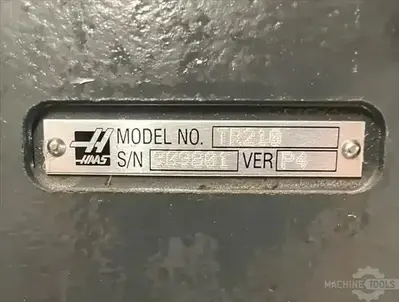

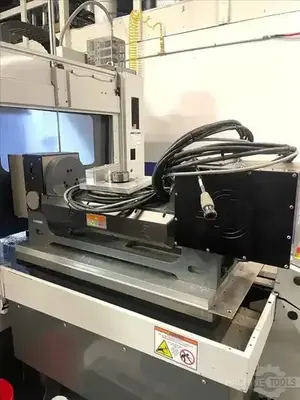

Haas TR-210 Dual-Axis Rotary Trunnion Table
| Table Size-X | 8.27" | 210.06 mm |
PLATTER
Platter Diameter: 8.3"
Max. Weight on Platter: 200 lbs
Max. Part Swing: 23.5"
Number of Std T-Slots: 6 @ 60°
SPINDLE - A (TILT)
Max. Speed: 60°/sec
Max. Torque: 300 ft-lb
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 400 ft-lb
SPINDLE - B (ROTARY)
Max. Speed: 60°/sec
Max. Torque: 210 ft-lb
Max. Runout: 0.0005"
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 200 ft-lb
INDEXING - A (TILT)
Max. Rotation/Step: +/- 120°
Resolution: 0.001°
Accuracy: +/- 15 arc-sec
Repeatability: 10 arc-sec
