Jet ETM-949EVS Elite Series 1 Vertical Mill
| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 36" | 914.4 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| Taper | R-8 | R-8 |
Table Size: 9" x 49"
Table Longitudinal Travel: 36"
Table Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 14"
Spindle Travel: 5"
Spindle Taper: R8
Quill Diameter: 3.375"
Spindle Speeds: 60 - 5000 RPM
Variable Speed Spindle

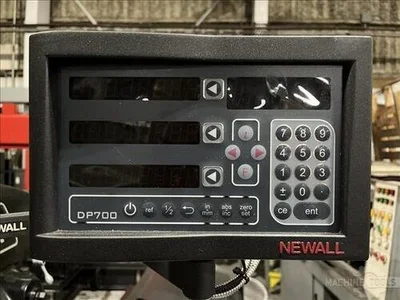

Newall DRO
Power Travel on (3) Axis
Power Draw Bar
Automatic Lubrication System
