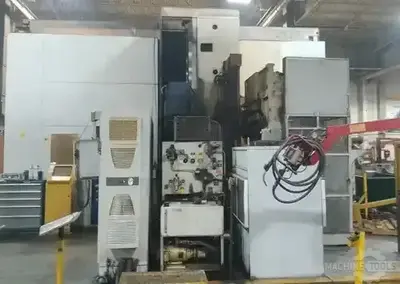

Giddings & Lewis MC-1600 CNC Horizontal Boring Mill
| Spindle Size | 6.1" | 154.94 mm |
| X-Horiz Tvl of Table | 141.7" | 3,599.2 mm |
| Y-Vert Tvl of Head | 141.7" | 3,599.2 mm |
| Power | 74 hp | 55.2 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 49.1" | 1,247.1 mm |
Spindle Diameter: 6.1"
Spindle Taper: ANSI B5.50 #50
Spindle Speeds: 1 - 3500 RPM
Spindle Travel Z Axis: 49.2"
Table Cross Travel X Axis: 141.7
Headstock Travel: 102.4"
Headstock Travel Above Pallet Y Axis: 88.9"
Saddle Travel W Axis: 78.7"
Pallet Size: 63" x 98.4"
Pallet Load Capacity: 33,100 lbs
Fanuc 31i CNC Control
Boom-Mounted Operators Panel w/ Rotational Adjustment
Operator's Worklight
Independent Electric (AC) Servo Drives; All Axes
Pre-loaded Anti-Friction Ball Screws; All Linear Axes
Power Drawbar
Keyway on Center of Pallets
Way Covers W, X and Y Axis
Thermal Compensation of Z Axis
Air Conditioner for Drive Panel Enclosure
