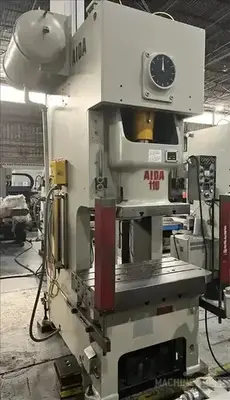

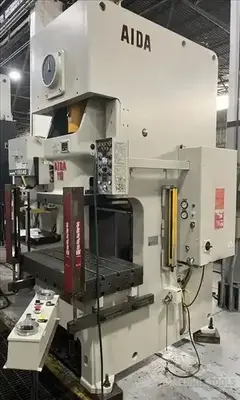

Aida NC1-110 Gap Frame Press
| Tonnage | 110 T | 99.79 t |
| Stroke | 7" | 177.8 mm |
| Shut Height | 13.7" | 347.98 mm |
| Power | 10 hp | 7.5 kW |

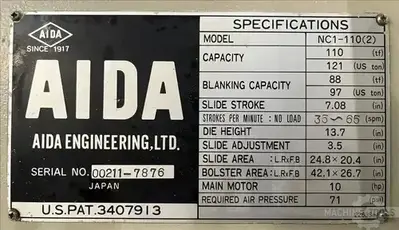

Capacity: 121 Ton
Blanking Capacity: 97 Ton
Slide Stroke: 7.1"
Speed: 35 - 65 SPM
Die Height: 13.7"
Slide Adjustment: 3.5"
Slide Area: 24.8" x 20.4"

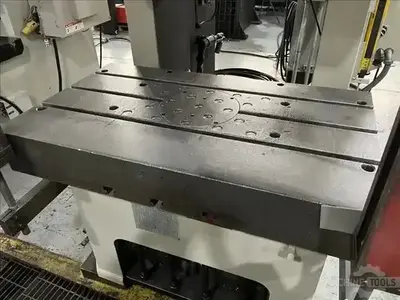

Bolster Area: 42.1" x 26.7"
Main Motor: 10 HP
Required Air Pressure: 71 PSI

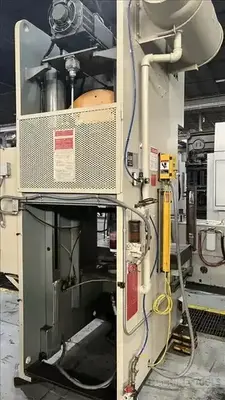

Dayton Pneumatic Dual Piston Die Cushion - 7.8 Tons
