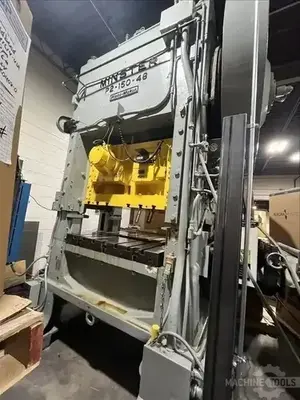

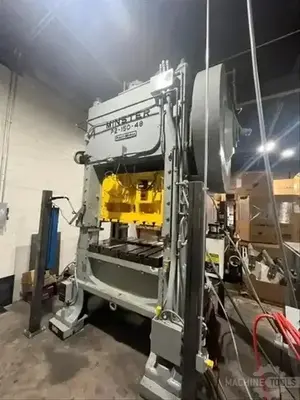

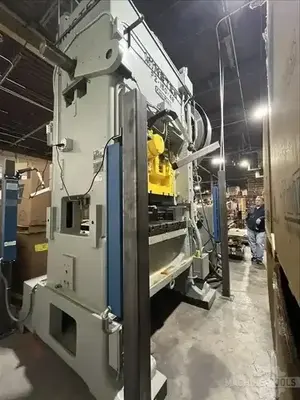

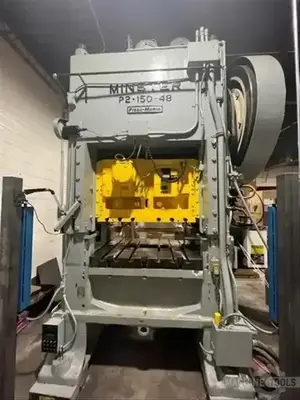

Minster P2-150-48 Piecemaker Straight Side Double Crank High Speed Press
| Tonnage | 150 T | 136.078 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 23" | 584.2 mm |
| Bed W | 36" | 914.4 mm |
| Bed L | 48" | 1,219.2 mm |
Capacity: 150 Ton
Stroke: 4"
Shut Height: 20"
Slide Adjustment: 4"
Bed Area: 48" x 40"
Slide Area: 45"x 30"
Windows: 20" Wide
Speed: 100 - 200 SPM
Omnilink II 5000 Control (New 2014)

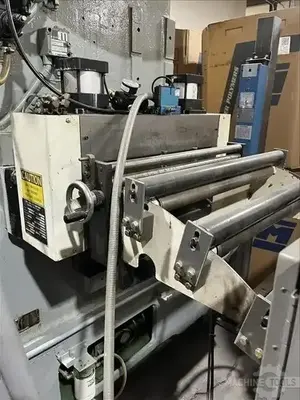

CWP SMXSE24 24" x .093" Press Mounted Servo Feed
Accra Wire Controls F-300AF 7,000 lbs Pallet Uncoiler
Air Clutch and Brake
Air Counterbalance

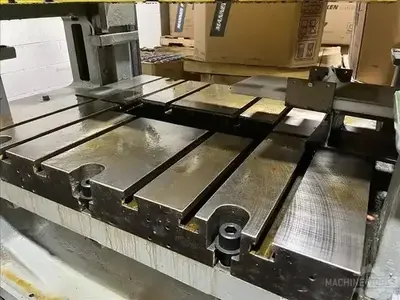

T-Slotted Bolster
T-Slotted Ram Plate

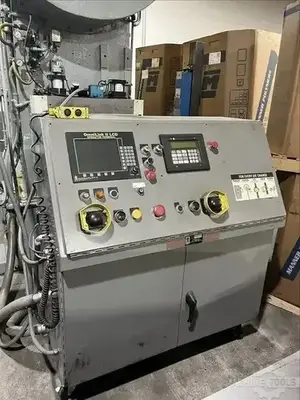

Control Console
Vibration Pads
