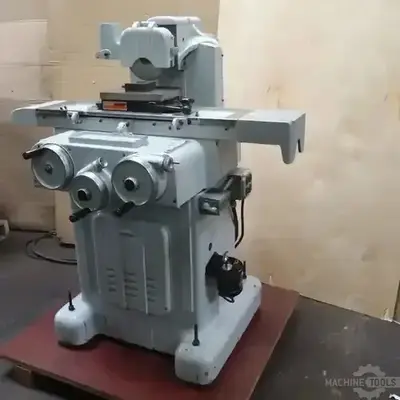

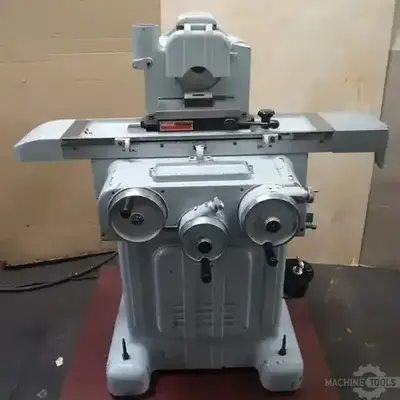

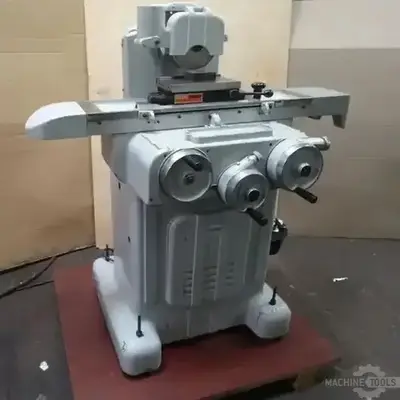

Taft Pierce #1 T-P Precision Recriprocating Surface Grinder
| Table-W | 5" | 127 mm |
| Table-L | 12" | 304.8 mm |
| Power | 1 hp | 0.7 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 7" | 177.8 mm |
Type: Manual
Table: 6" x 10"
Table to Spindle Center: 12"
Longitudinal Table Travel: 12.5"
Cross Travel: 6"
Grinding Wheel Capacity: 7" x 0.75" x 1.25"
Chuck Size: 6" x 10"
Spindle Speed: 0 RPM - 365 RPM
Crossfeed Movement Per Rev of Handwheel: 0.100"
Crossfeed Handwheel: 0.001"
Crossfeed Fine Feed Knob Grad.: 0.00005"
Vertical Feed Per Rev of Handwheel: 0.05"
Standard Handwheel Grad.: 0.0005"
Fine Feed Knob Grad.: 0.00005"
Tilting Wheelhead Option (30°)
Knob for Vertical Axis, 1 HP Taft Pierce Super-Precision Spindle Drive
Anti-Backlash Nut Assembly for Crossfeed
Automation Lubrication System
Saddle Lock
Replaceable Longitudinal Ways (VEE and Flay Way)

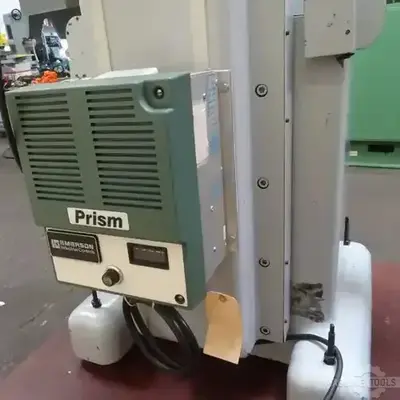

240 Volts / 7.2 Amps Adjustable Frequency Inverter Drive
- Currently Wired for 220 Volts
