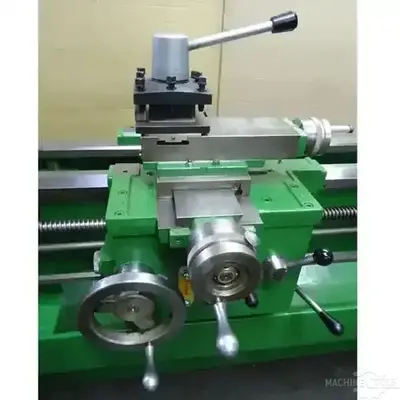

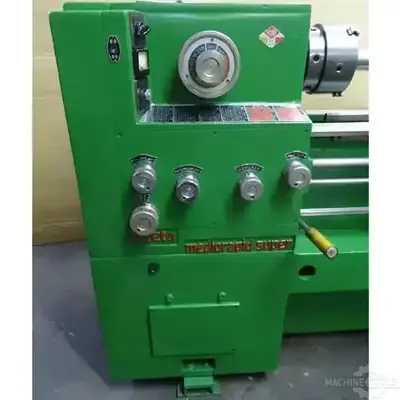

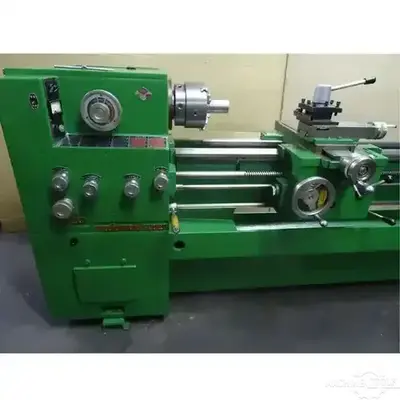

Azeta Mediorapid Super Engine Lathe
| Swing | 14" | 355.6 mm |
| Centers | 59" | 1,498.6 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,155 RPM | 1,155 RPM |
Swing Over Bed: 14"
Swing Over Cross Slide: 8-3/8"
Bar Capacity Thru Spindle: 2-1/4"
Distance Between Centers: 59"
3-Jaw Chuck Diameter: 8"
Opening Thru Chuck: 2-3/8"
Threads: Standard / Metric
Spindle Nose: 7" D-1-6 Camlock
Spindle Speeds: 26, 40, 60, 283, 425, 640, 930, 1400, 2100 RPM

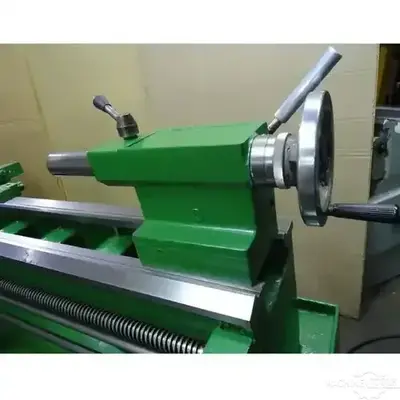

Tailstock Spindle Diameter: 2-3/16"
Tailstock Center: 3 MT
Tailstock Spindle Travel: 6-1/2"
Bed Width: 10-5/8"
Leadscrew Diameter: 1-3/8"
Feed Rod Diameter: 7/8"
Width of Bridge: 6-3/4"
Cross Slide Travel: 9-1/2"
Compound Rest Travel: 5"
Tool Block Capacity: 1-3/8"
Motor: 7.5 HP
Motor Electricals: 230V / 3 / 23A
Motor Speed: 1155 RPM
4-Way Tool Post
2V, 2 Flat Induction Hardened Ways
