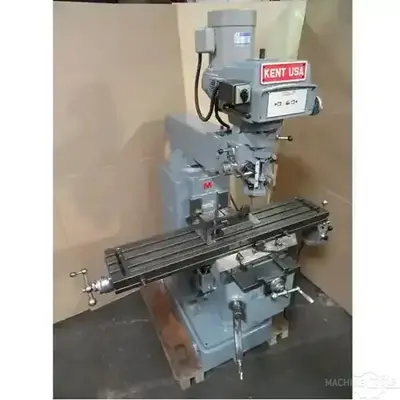

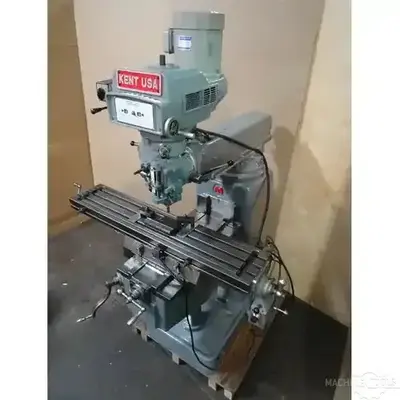

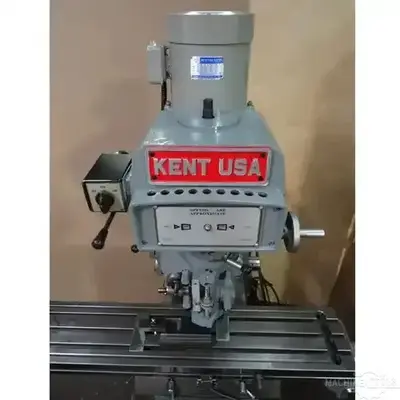

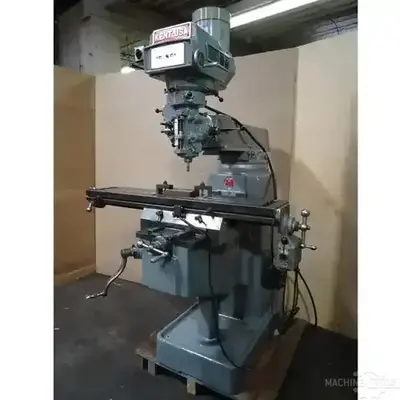

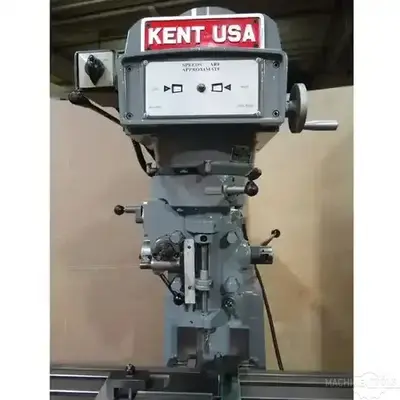

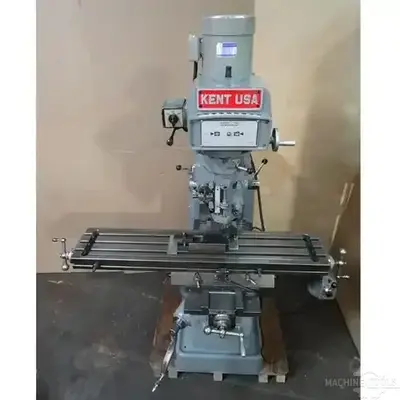

Kent KTM4VK Vertical Knee Mill
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 500 RPM | 500 RPM |
X-Axis Travel: 30"
Y-Axis Travel: 16'
Quill Travel: 5"
Knee Travel: 16"
Ram Travel: 24"
Table Size: 10" x 50"
T-Slots: 3 on 2.5"
T-Slot Size: 5/8"
Spindle Taper: R8
Spindle Speeds, Low Range: 60 - 500 RPM
Spindle Speeds, High Range: 500 - 4200 RPM
Throat Distance Minimum: 4-1/4"
Throat Distance Maximum 28-1/4"
Max. Milling Feedrate: 35 IPM
3 HP 3-Phase Motor
230 / 460 VAC (Currently Wired @ 230 VAC)
8.5 / 4.2 Amps
